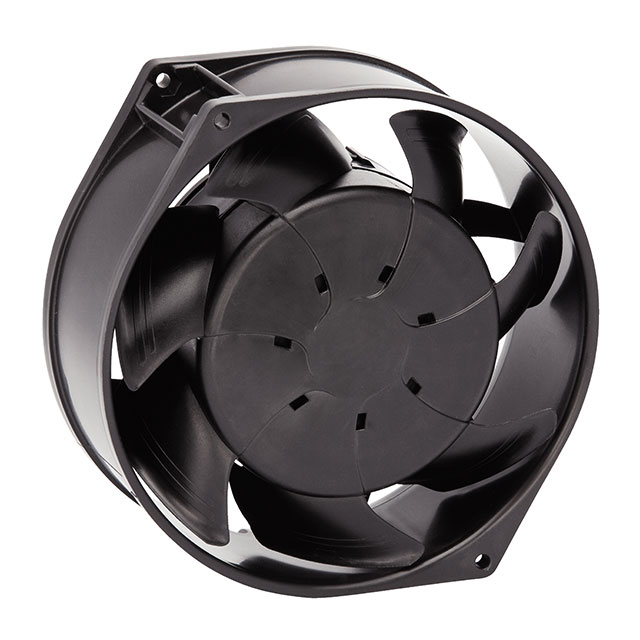

W1G130 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN 220VAC 220CFM 130MM
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Static Pressure | Static Pressure | Weight | Weight | RPM | Voltage - Rated | Approval Agency | Width | Ingress Protection | Bearing Type | Fan Type | Size / Dimension | Size / Dimension [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 190 mA | Polypropylene (PP) | 0.363 in H2O | 90.5 Pa | 1.7 lbs | 771.1 g | 3200 RPM | 230 VAC | CCC CSA EAC UL VDE | 58 mm | IP54 - Dust Protected Water Resistant | Ball | Tubeaxial | Round | 151 mm | 70 °C | -30 ░C | -30 °C | 70 °C | 24 W |
ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 0.38 A | Polypropylene (PP) | 0.363 in H2O | 90.5 Pa | 1.7 lbs | 771.1 g | 3200 RPM | 115 VAC | CSA EAC UL VDE | 58 mm | IP54 - Dust Protected Water Resistant | Ball | Tubeaxial | Round | 151 mm | -30 ░C | 60 °C | 24 W |
