282845 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLK 3P SIDE ENT 7.62MM PCB
| Part | Current | Contact Material - Plating [custom] | Mating Orientation | Screw Material - Plating | Positions Per Level | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Color | Voltage | Pitch [x] | Pitch [x] | Wire Termination | Screw Thread | Number of Levels | Features | Torque - Screw | Torque - Screw | Clamp Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

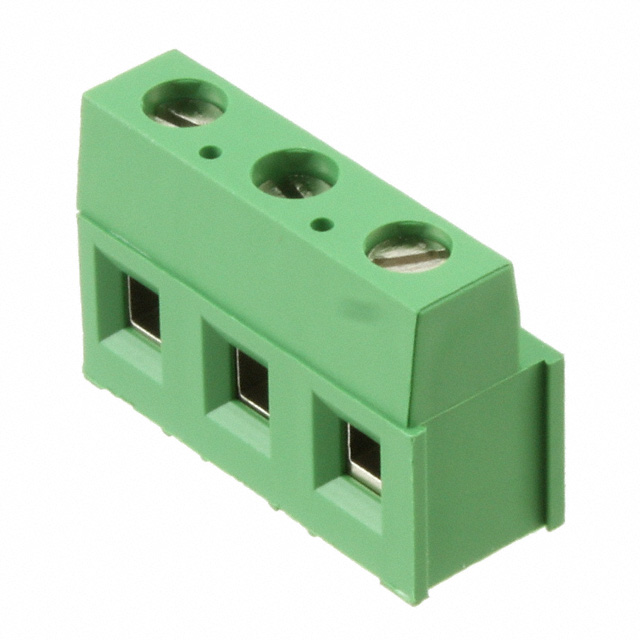

 TE Connectivity Raychem Cable Protection | 17.5 A | Brass - Tin Plated | Horizontal with Board | Brass - Nickel Plated | 3 | Through Hole | 30 AWG | 12 AWG | Green | 300 V | 0.3 in | 7.62 mm | Screw - Rising Cage Clamp | M3 | 1 | Interlocking (Side) | 0.79 Nm | 7 Lb-In | Brass - Nickel Plated |

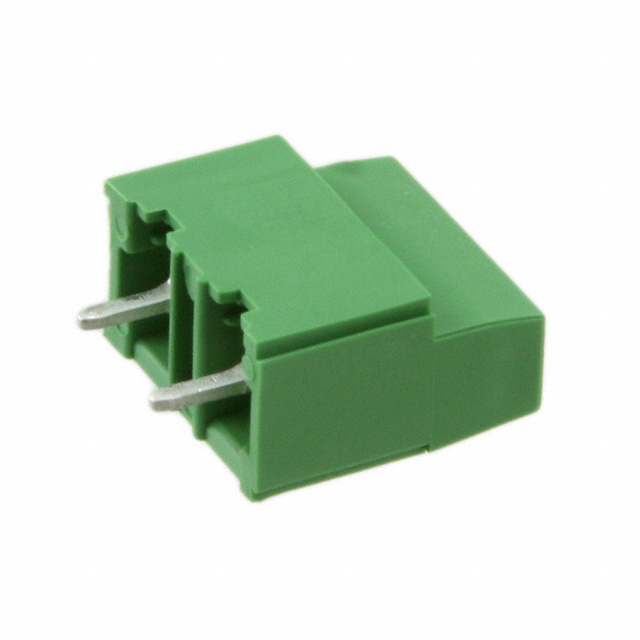

 TE Connectivity Raychem Cable Protection | 17.5 A | Brass - Tin Plated | Horizontal with Board | Brass - Nickel Plated | 2 | Through Hole | 30 AWG | 12 AWG | Green | 300 V | 0.3 in | 7.62 mm | Screw - Rising Cage Clamp | M3 | 1 | Interlocking (Side) | 0.79 Nm | 7 Lb-In | Brass - Nickel Plated |
