MS3122E20 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 41POS GOLD CRIMP

Part	Contact Finish - Mating	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection	Shell Finish	Primary Material	Insert Material	Connector Type	Shielding	Mounting Feature	Qualification	Grade	Fastening Type	Mounting Type	Orientation	Shell Material	Applications	Color	Termination	Contact Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Note	Contact Shape	Shell Size - Insert Length	Shell Size - Insert Width	Contact Type	Contact Size	Housing Color	Type	Current Rating	Voltage Rating

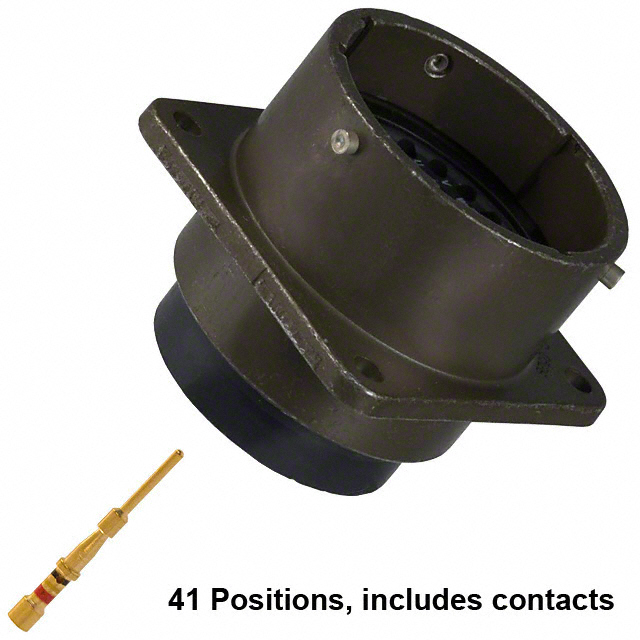

Amphenol Aerospace Operations MS3122E-20-41P	Gold	41	125 °C	-55 °C	Environment Resistant	Cadmium Olive Drab Chromate	Metal	Neoprene	Male Pins Receptacle	Unshielded	Flange	MIL-DTL-26482 Series I	Military	Bayonet Lock	Panel Mount	N (Normal)	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Olive Drab	Crimp	Copper Alloy	41	20
Amphenol Aerospace Operations MS3122E20-16SLC		16	125 °C	-55 °C	Environment Resistant	Cadmium Chromate		Neoprene	Receptacle Housing	Unshielded	Flange	MIL-DTL-26482 Series I	Military	Bayonet Lock	Panel Mount	N (Normal)	Aluminum							Contacts Not Included	Circular	20 mm	16 mm	Crimp	16 S	Olive Drab	For Female Sockets
Amphenol Aerospace Operations MS3122E20-41PY
Amphenol Aerospace Operations MS3122E20-41P(LC)
Amphenol Aerospace Operations MS3122E20-39P	Gold	39	125 °C	-55 °C	Environment Resistant	Cadmium Olive Drab Chromate	Metal		Male Pins Receptacle	Unshielded	Flange	MIL-DTL-26482 Series I	Military	Bayonet Lock	Panel Mount	N (Normal)	Aluminum		Olive Drab	Crimp		39	20
Amphenol Aerospace Operations MS3122E20-16S	Gold	16	125 °C	-55 °C	Environment Resistant	Cadmium Olive Drab Chromate	Metal	Neoprene	Female Sockets Receptacle	Unshielded	Flange	MIL-DTL-26482 Series I	Military	Bayonet Lock	Panel Mount	N (Normal)	Aluminum	Aerospace Industrial Instrumentation Mass Transit Military	Olive Drab	Crimp	Copper Alloy					20 mm	16 mm					13 A	1000 V
Amphenol Aerospace Operations MS3122E20-41PW
Amphenol Aerospace Operations MS3122E20-16PZ	Gold	16	125 °C	-55 °C	Environment Resistant	Cadmium Olive Drab Chromate	Metal	Neoprene	Male Pins Receptacle	Unshielded	Flange	MIL-DTL-26482 Series I	Military	Bayonet Lock	Panel Mount	Z	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Olive Drab	Crimp	Copper Alloy					20 mm	16 mm
Amphenol Aerospace Operations MS3122E20-16PLC		16	125 °C	-55 °C	Environment Resistant	Cadmium Chromate		Neoprene	Receptacle Housing	Unshielded	Flange	MIL-DTL-26482 Series I	Military	Bayonet Lock	Panel Mount	N (Normal)	Aluminum							Contacts Not Included	Circular	20 mm	16 mm	Crimp	16 S	Olive Drab	For Male Pins
Amphenol Aerospace Operations MS3122E-20-41P	Gold	41	125 °C	-55 °C	Environment Resistant	Cadmium Olive Drab Chromate	Metal	Neoprene	Male Pins Receptacle	Unshielded	Flange	MIL-DTL-26482 Series I	Military	Bayonet Lock	Panel Mount	N (Normal)	Aluminum	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Olive Drab	Crimp	Copper Alloy	41	20
