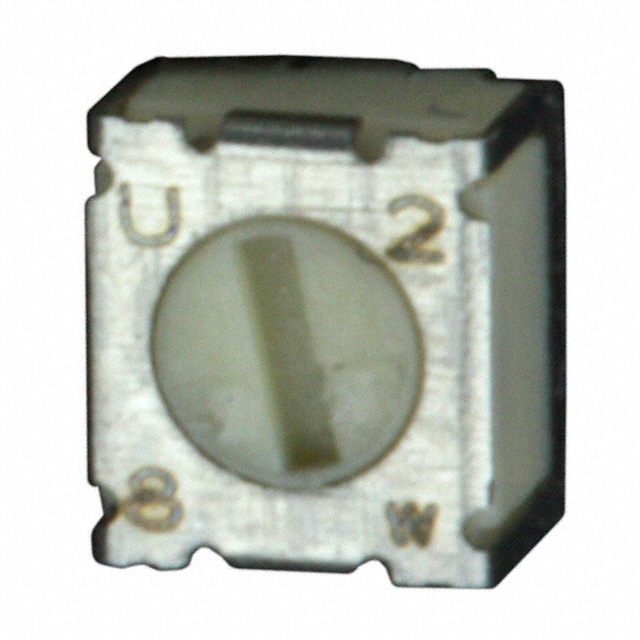

3312J Series

Catalog

TRIMMER 20 OHM 0.1W J LEAD TOP

Part	Temperature Coefficient	Resistive Material	Termination Style	Tolerance	Mounting Type	Number of Turns	Adjustment Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Resistance
Bourns Inc. 3312J-1-200E	100 ppm/°C	Cermet	J Lead	20 %	Surface Mount	1	Top Adjustment	2.5 mm	2.8 mm	0.098 in	0.11 in	0.1 W	0.1 W	20 Ohms
Bourns Inc. 3312J-1-201E	100 ppm/°C	Cermet	J Lead	20 %	Surface Mount	1	Top Adjustment	2.5 mm	2.8 mm	0.098 in	0.11 in	0.1 W	0.1 W	200 Ohms
Bourns Inc. 3312J-1-503E	100 ppm/°C	Cermet	J Lead	20 %	Surface Mount	1	Top Adjustment	2.5 mm	2.8 mm	0.098 in	0.11 in	0.1 W	0.1 W	50000 Ohms
Bourns Inc. 3312J-1-204E	100 ppm/°C	Cermet	J Lead	20 %	Surface Mount	1	Top Adjustment	2.5 mm	2.8 mm	0.098 in	0.11 in	0.1 W	0.1 W	200000 Ohms
Bourns Inc. 3312J-1-502E	100 ppm/°C	Cermet	J Lead	20 %	Surface Mount	1	Top Adjustment	2.5 mm	2.8 mm	0.098 in	0.11 in	0.1 W	0.1 W	5 kOhms
Bourns Inc. 3312J-1-205E	100 ppm/°C	Cermet	J Lead	20 %	Surface Mount	1	Top Adjustment	2.5 mm	2.8 mm	0.098 in	0.11 in	0.1 W	0.1 W	2 MOhms
Bourns Inc. 3312J-1-103E	100 ppm/°C	Cermet	J Lead	20 %	Surface Mount	1	Top Adjustment	2.5 mm	2.8 mm	0.098 in	0.11 in	0.1 W	0.1 W	10000 Ohms
Bourns Inc. 3312J-1-203E	100 ppm/°C	Cermet	J Lead	20 %	Surface Mount	1	Top Adjustment	2.5 mm	2.8 mm	0.098 in	0.11 in	0.1 W	0.1 W	20 kOhms
Bourns Inc. 3312J-1-100E	100 ppm/°C	Cermet	J Lead	20 %	Surface Mount	1	Top Adjustment	2.5 mm	2.8 mm	0.098 in	0.11 in	0.1 W	0.1 W	10 Ohms
Bourns Inc. 3312J-1-202E	100 ppm/°C	Cermet	J Lead	20 %	Surface Mount	1	Top Adjustment	2.5 mm	2.8 mm	0.098 in	0.11 in	0.1 W	0.1 W	2 kOhms
