SU7VC Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 0.25MH, 1.2A ROHS COMPLIANT: YES

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance @ Frequency	Current Rating (Max) [Max]	Package / Case	Number of Lines	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max] [z]	Height (Max)	Voltage Rating - AC	Filter Type	Mounting Type	DC Resistance (DCR) (Max)
KEMET SU7VC-12002	0.394 in	15 mm	10 mm	0.591 in	250 µH	1.2 A	Vertical 4 PC Pin	2	160 mOhm	120 °C	-25 °C	0.335 in	8.5 mm	125 V	Power Line	Through Hole
KEMET SU7VC-02120	0.394 in	15 mm	10 mm	0.591 in	12 mH	200 mA	Vertical 4 PC Pin	2	6.5 Ohm	120 °C	-25 °C	0.335 in	8.5 mm	125 V	Power Line	Through Hole

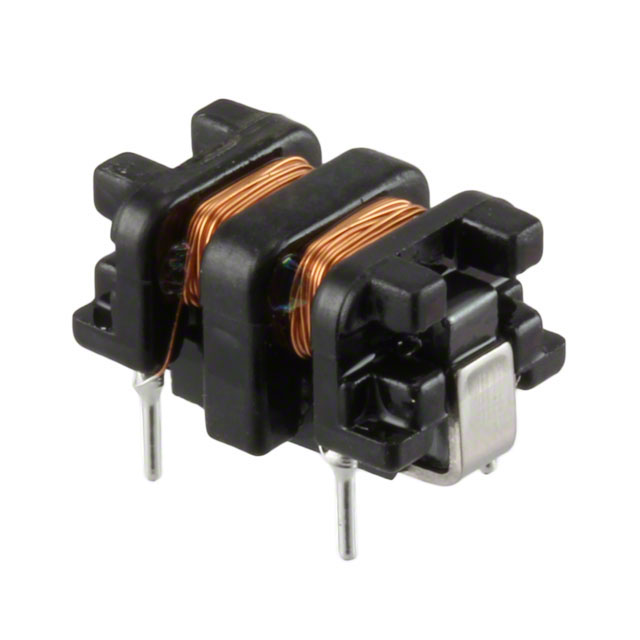

KEMET SU7VC-05011	0.394 in	15 mm	10 mm	0.591 in	1.1 mH	500 mA	Vertical 4 PC Pin	2		120 °C	-25 °C	0.335 in	8.5 mm	125 V	Power Line	Through Hole	840 mOhm
