D2JW Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

BASIC / SNAP ACTION SWITCHES PIN PLUNGER LEAD WIRE 250G

Part	Differential Travel	Differential Travel	Mounting Type	Operating Position	Operating Position	Termination Style	Mechanical Life	Circuit	Current Rating (Amps)	Operating Force	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Voltage Rating - DC	Actuator Type	Overtravel [custom]	Overtravel [custom]	Switch Function	Electrical Life	Release Force
Omron Electronics Inc-EMC Div D2JW-011-MD	0.1 mm	0.004 in	Chassis Mount	8.1 mm	0.319 in	Wire Leads	1000000 Cycles	SPDT	100 mA	0.25 kgf	IP67 - Dust Tight Waterproof	85 °C	-40 C	0.6 mm	0.024 in	30 V	Round (Pin Plunger)	0.011 "	0.3 mm	On-Mom	100000 Cycles

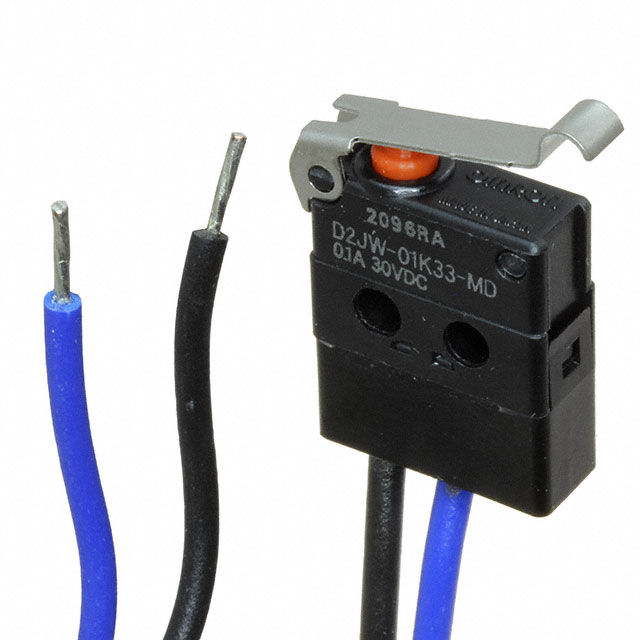

Omron Electronics Inc-EMC Div D2JW-01K33-MD	0.6 mm	0.025 in	Chassis Mount	10.3 mm	0.406 in	Wire Leads	1000000 Cycles	SPST-NO	100 mA	97 gf	IP67 - Dust Tight Waterproof	85 °C	-40 C	5.5 mm	0.218 in	30 V	Lever Simulated Roller	0.045 "	1.1 mm	Off-Mom	100000 Cycles	20 gf
Omron Electronics Inc-EMC Div D2JW-01K11L	0.7 mm	0.027 in	Chassis Mount	8.4 mm	0.33 in	Solder Lug	1000000 Cycles	SPDT	100 mA	82 gf	IP67 - Dust Tight Waterproof	85 °C	-40 C	6.4 mm	0.252 in	30 V	Lever Straight	0.055 "	1.4 mm	On-Mom	100000 Cycles	16 gf
Omron Electronics Inc-EMC Div D2JW-01K1A1-MD	0.5 mm	0.02 in	Chassis Mount	8.4 mm	0.33 in	Wire Leads	1000000 Cycles	SPDT	100 mA	117 gf	IP67 - Dust Tight Waterproof	85 °C	-40 C	5.4 mm	0.214 "	30 V	Lever Straight	0.026 "	0.7 mm	On-Mom	100000 Cycles	23 gf

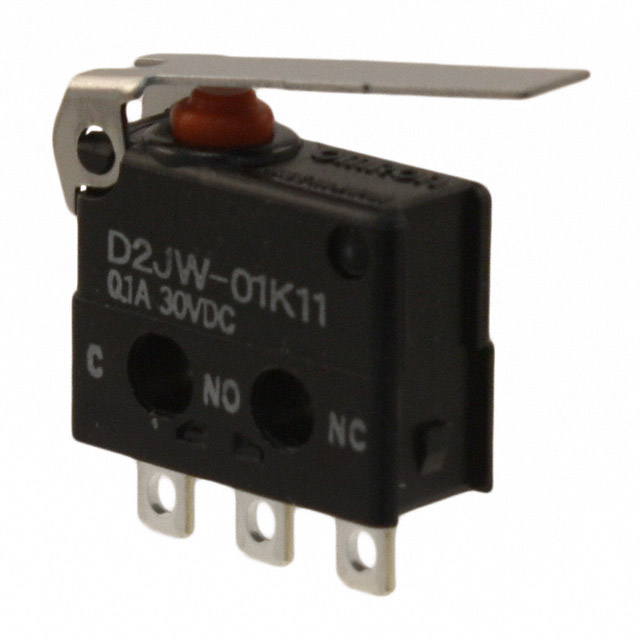

Omron Electronics Inc-EMC Div D2JW-01K11	0.7 mm	0.027 in	Chassis Mount	8.4 mm	0.33 in	Solder Lug	1000000 Cycles	SPDT	100 mA	82 gf	IP67 - Dust Tight Waterproof	85 °C	-40 C	6.4 mm	0.252 in	30 V	Lever Straight	0.055 "	1.4 mm	On-Mom	100000 Cycles	16 gf
Omron Electronics Inc-EMC Div D2JW-01K11-MD	0.7 mm	0.027 in	Chassis Mount	8.4 mm	0.33 in	Wire Leads	1000000 Cycles	SPDT	100 mA	82 gf	IP67 - Dust Tight Waterproof	85 °C	-40 C	6.4 mm	0.252 in	30 V	Lever Straight	0.055 "	1.4 mm	On-Mom	100000 Cycles	16 gf

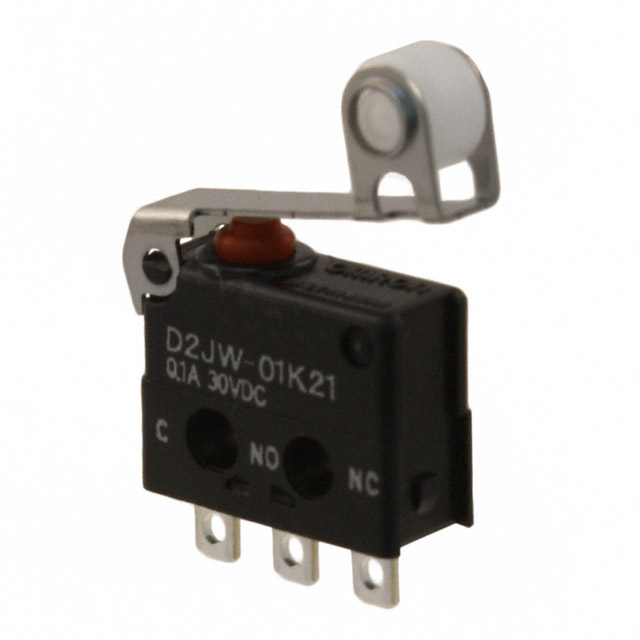

Omron Electronics Inc-EMC Div D2JW-01K21	0.5 mm	0.02 in	Chassis Mount	14.6 mm	0.575 in	Solder Lug	1000000 Cycles	SPDT	100 mA	100 gf	IP67 - Dust Tight Waterproof	85 °C	-40 C	5.2 mm	0.205 in	30 V	Lever Roller	0.045 "	1.1 mm	On-Mom	100000 Cycles	20 gf

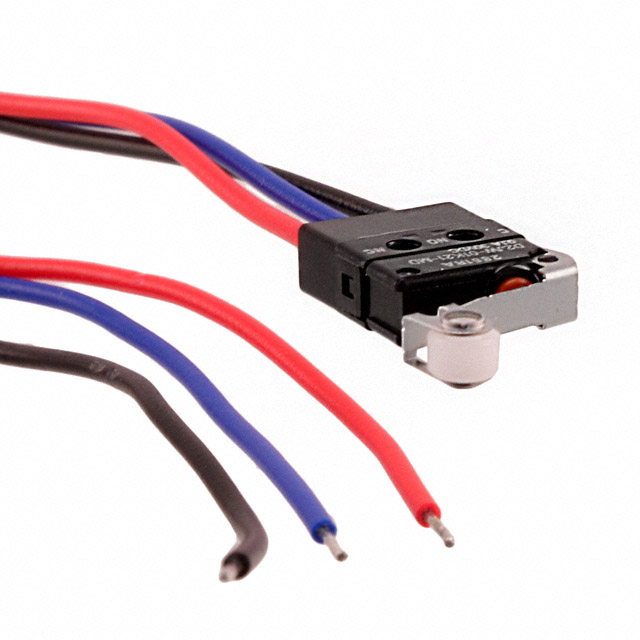

Omron Electronics Inc-EMC Div D2JW-01K21-MD	0.5 mm	0.02 in	Chassis Mount	14.6 mm	0.575 in	Wire Leads	1000000 Cycles	SPDT	100 mA	100 gf	IP67 - Dust Tight Waterproof	85 °C	-40 C	5.2 mm	0.205 in	30 V	Lever Roller	0.045 "	1.1 mm	On-Mom	100000 Cycles	20 gf
Omron Electronics Inc-EMC Div D2JW-01K1A1	0.5 mm	0.02 in	Chassis Mount	8.4 mm	0.33 in	Solder Lug	1000000 Cycles	SPDT	100 mA	117 gf	IP67 - Dust Tight Waterproof	85 °C	-40 C	5.4 mm	0.214 "	30 V	Lever Straight	0.026 "	0.7 mm	On-Mom	100000 Cycles	23 gf

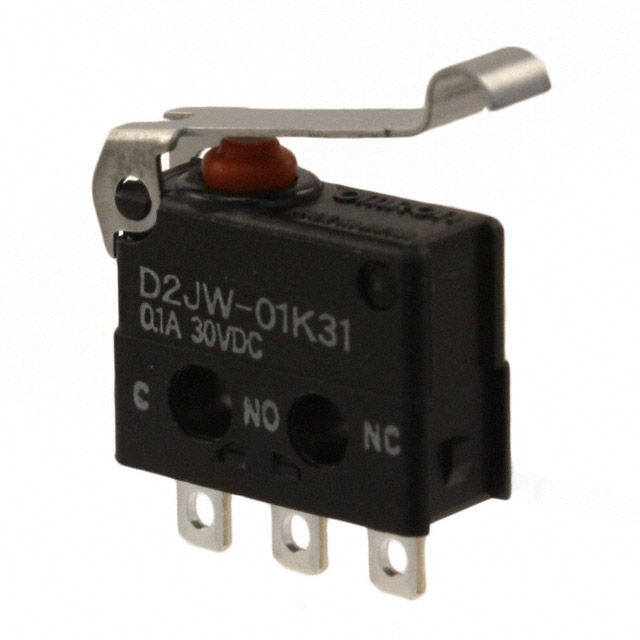

Omron Electronics Inc-EMC Div D2JW-01K31	0.6 mm	0.025 in	Chassis Mount	10.3 mm	0.406 in	Solder Lug	1000000 Cycles	SPDT	100 mA	97 gf	IP67 - Dust Tight Waterproof	85 °C	-40 C	5.5 mm	0.218 in	30 V	Lever Simulated Roller	0.045 "	1.1 mm	On-Mom	100000 Cycles	20 gf
