530745 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

CONN RCPT 30POS 0.05 GOLD PCB

Part	Pitch - Mating	Pitch - Mating	Features	Insulation Material	Number of Positions	Contact Finish - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Shape	Connector Type	Termination	Mounting Type	Insulation Color	Number of Rows	Insulation Height	Insulation Height	Fastening Type
TE Connectivity Aerospace, Defense and Marine 530745-2	0.05 in	1.27 mm	Mating Guide	Liquid Crystal Polymer (LCP)	30	Gold	Female Socket	1.27 µm	50 µin	0.15 in	3.81 mm	All	Square	Receptacle	Solder	Through Hole	Gray	2	5.45 mm	0.215 in	Push-Pull
TE Connectivity Aerospace, Defense and Marine 2-530745-0	0.05 in	1.27 mm	Mating Guide	Liquid Crystal Polymer (LCP)	100	Gold	Female Socket	1.27 µm	50 µin	0.15 in	3.81 mm	All	Square	Receptacle	Solder	Through Hole	Gray	2	5.45 mm	0.215 in	Push-Pull

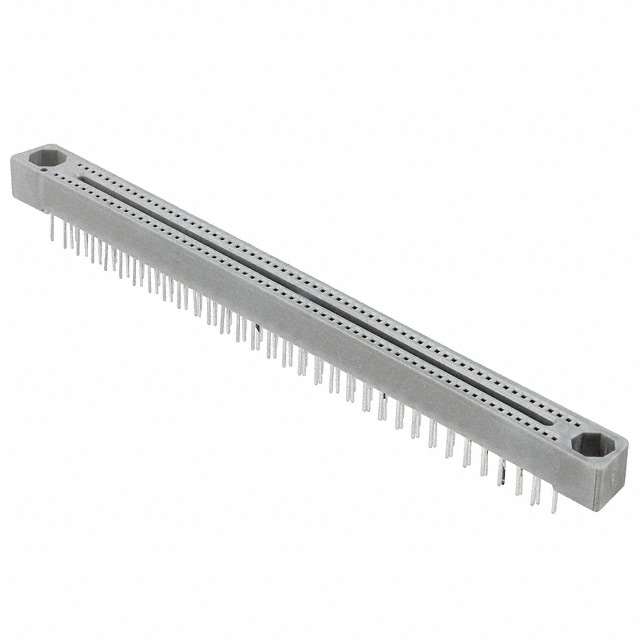

TE Connectivity Aerospace, Defense and Marine 1-530745-1	0.05 in	1.27 mm	Mating Guide	Liquid Crystal Polymer (LCP)	128	Gold	Female Socket	1.27 µm	50 µin	0.15 in	3.81 mm	All	Square	Receptacle	Solder	Through Hole	Gray	2	5.45 mm	0.215 in	Push-Pull
TE Connectivity Aerospace, Defense and Marine 530745-3	0.05 in	1.27 mm	Mating Guide	Liquid Crystal Polymer (LCP)	40	Gold	Female Socket	1.27 µm	50 µin	0.15 in	3.81 mm	All	Square	Receptacle	Solder	Through Hole	Gray	2	5.45 mm	0.215 in	Push-Pull
TE Connectivity Aerospace, Defense and Marine 1-530745-8	0.05 in	1.27 mm	Mating Guide	Liquid Crystal Polymer (LCP)	80	Gold	Female Socket	1.27 µm	50 µin	0.15 in	3.81 mm	All	Square	Receptacle	Solder	Through Hole	Gray	2	5.45 mm	0.215 in	Push-Pull
TE Connectivity Aerospace, Defense and Marine 1-530745-9	0.05 in	1.27 mm	Mating Guide	Liquid Crystal Polymer (LCP)	90	Gold	Female Socket	1.27 µm	50 µin	0.15 in	3.81 mm	All	Square	Receptacle	Solder	Through Hole	Gray	2	5.45 mm	0.215 in	Push-Pull
TE Connectivity Aerospace, Defense and Marine 530745-9	0.05 in	1.27 mm	Mating Guide	Liquid Crystal Polymer (LCP)	100	Gold	Female Socket	1.27 µm	50 µin	0.15 in	3.81 mm	All	Square	Receptacle	Solder	Through Hole	Gray	2	5.45 mm	0.215 in	Push-Pull
