Headers & Wire Housings
Headers & Wire Housings
| Part | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Applications | Mounting Type | Termination | Insulation Color | Contact Finish - Mating | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Features | Insulation Height [z] | Insulation Height [z] | Number of Rows [custom] | Connector Type | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Number of Positions | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Contact Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

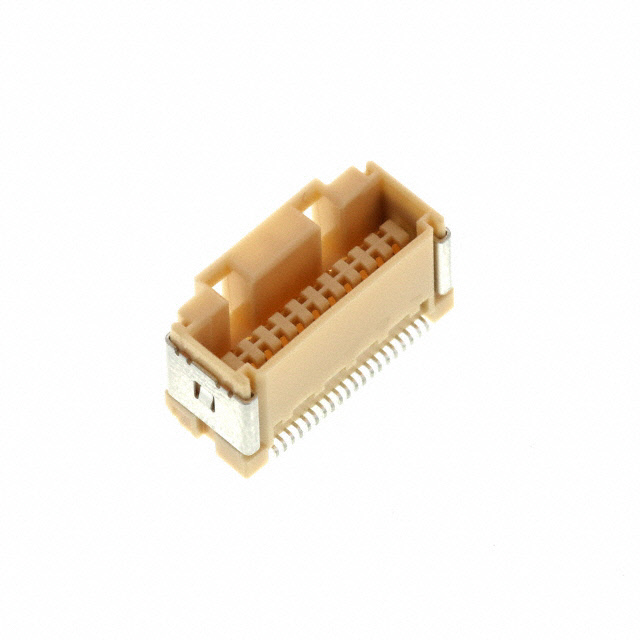

 Molex | Copper Alloy | 39.4 çin | 1 çm | Nylon Polyamide (PA) | General Purpose | Right Angle Surface Mount | Solder | Natural | Gold | UL94 V-0 | 85 °C | -25 °C | Pick and Place Solder Retention | 7.5 mm | 0.295 in | 2 | Receptacle | 50 V | 0.049 in | 1.25 mm | Tin | 20 | All | 3.9 µin | 0.099 µm | Detent Lock | Forked | Board to Cable/Wire |
