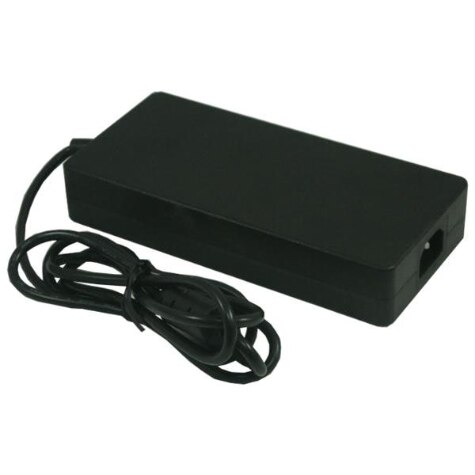

PUP230N3 Series
Desktop AC Adapters 230W/19.5V/11.79A ITE AC/DC DT C14 6P MINI FIT
Manufacturer: TT Electronics/BI
Catalog
Desktop AC Adapters 230W/19.5V/11.79A ITE AC/DC DT C14 6P MINI FIT
Beta
⌘K
Desktop AC Adapters 230W/19.5V/11.79A ITE AC/DC DT C14 6P MINI FIT
Desktop AC Adapters 230W/19.5V/11.79A ITE AC/DC DT C14 6P MINI FIT
Desktop AC Adapters 230W/19.5V/11.79A ITE AC/DC DT C14 6P MINI FIT
| Part | Voltage - Output | Current - Output (Max) [Max] | Output Connector | Input Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Input Connector | Approval Agency | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Form | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Standard Number | Cord Length | Cord Length | No Load Power Consumption | Applications | Region Utilized |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 24 V | 9.58 A | Power DIN 4 Pin | Cord (Sold Separately) | 32.3 mm | 3.39 " | 1.27 " | 6.97 " | 177 mm | 86.1 mm | IEC 320-C14 | CE cULus GS TUV | 230 W | 40 °C | 0 °C | Desktop (Class I) | 264 VAC | 90 VAC | CoC Tier 2 Level VI | 62368-1 | 1.5 m | 59 in | 150 mW | ITE (Commercial) | International |
