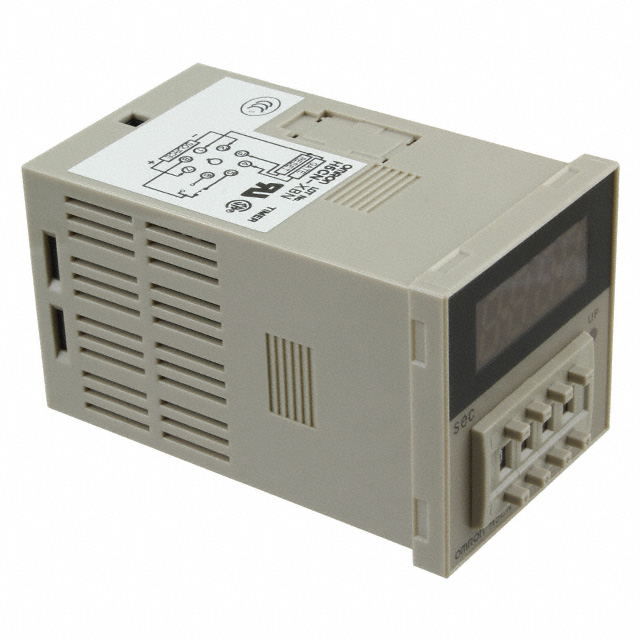

H5CN-X Series

Catalog

RELAY TIME DELAY 99H 59M 3A 250V

Part	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]	Function	Contact Rating @ Voltage	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Termination Style	Timing Adjustment Method	Relay Type	Delay Time [Max]
Omron Electronics Inc-EMC Div H5CN-XDN AC100-240	Input Voltage	1 Min	99 Hrs 59 Min	On-Delay	3 A 250 VAC	100 VAC	240 VAC	Socketable	Plug In 8 Pin (Octal)	Up/Down Digit Keys	Mechanical Relay
Omron Electronics Inc-EMC Div H5CN-XCNM DC24	Input Voltage	1 Sec	99 Min 59 Sec	On-Delay	3 A 250 VAC	12 V	48 V	Socketable	Plug In 11 Pin (Octal)	Up/Down Digit Keys	Mechanical Relay
Omron Electronics Inc-EMC Div H5CN-XDN DC12-48	Input Voltage	1 Min	99 Hrs 59 Min	On-Delay	3 A 250 VAC	12 V	48 V	Socketable	Plug In 8 Pin (Octal)	Up/Down Digit Keys	Mechanical Relay
Omron Electronics Inc-EMC Div H5CN-XAN DC12-48	Input Voltage	0.001 Sec		On-Delay	3 A 250 VAC	12 V	48 V	Socketable	Plug In 8 Pin (Octal)	Up/Down Digit Keys	Mechanical Relay	9.999 Sec
Omron Electronics Inc-EMC Div H5CN-XZNS DC12-48	Input Voltage	0.001 Sec		On-Delay		12 V	48 V	Socketable	Plug In 8 Pin (Octal)	Up/Down Digit Keys	Solid State Relay	9.999 Sec
