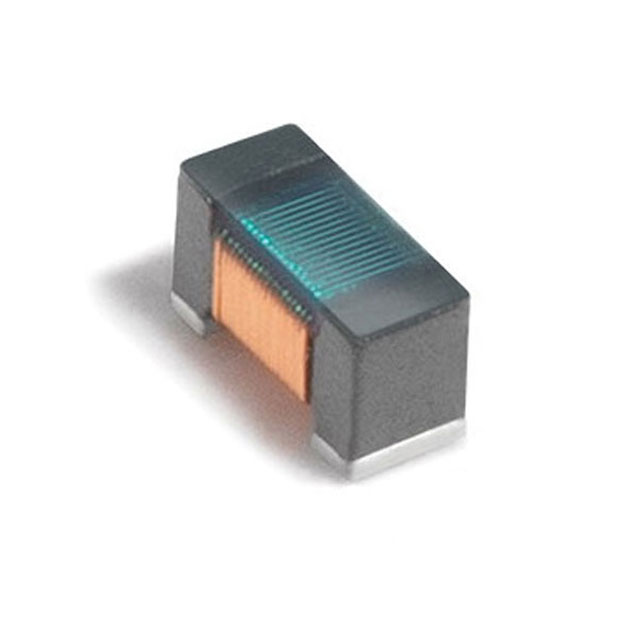

0402DF Series
Manufacturer: Coilcraft
Beta
⌘K
POWER INDUCTORS - SMD 0402 1000NH UNSHLD 5% 190MA 1.05 OHMS
| Part | Package / Case | Type | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Shielding | Tolerance | DC Resistance (DCR) [Max] | Frequency - Self Resonant | Current Rating (Amps) | Mounting Type | Supplier Device Package | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Inductance | Material - Core | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coilcraft | 0402 (1005 Metric) | Wirewound | 125 °C | -40 C | AEC-Q200 | Unshielded | 5 % | 1.05 Ohm | 235 MHz | 190 mA | Surface Mount | 0402 | 0.66 mm | 0.044 " | 0.026 " | 1.11 mm | 7.9 MHz | 1 µH | Ferrite | 0.026 in | 0.66 mm |
 Coilcraft | 0402 (1005 Metric) | Wirewound | 125 °C | -40 C | AEC-Q200 | Unshielded | 5 % | 79 mOhm | 2.3 GHz | 1 A | Surface Mount | 0402 | 0.66 mm | 0.044 " | 0.026 " | 1.11 mm | 7.9 MHz | 90 nH | Ferrite | 0.026 in | 0.66 mm |
Coilcraft | 0402 (1005 Metric) | Wirewound | 125 °C | -40 C | AEC-Q200 | Unshielded | 5 % | 1.3 Ohm | 600 MHz | 0.23 A | Surface Mount | 0402 | 0.66 mm | 0.044 " | 0.026 " | 1.11 mm | 7.9 MHz | 700 nH | Ferrite | 0.026 in | 0.66 mm |
