SLIC Series

Catalog

POWER INDUCTORS - SMD INDUCTOR NL

Part	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Type	Mounting Type	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]
Pulse Electronics PE-53653NL	16.1 µH	9.91 mm	0.39 "	Unshielded	Nonstandard	130 °C	-40 C	32 mOhm	Toroidal	Surface Mount	5.1 A	17.78 mm	0.67 "	17.02 mm	0.7 "
Pulse Electronics PE-53614NLT	1.07 mH	9.91 mm	0.39 "	Unshielded	Nonstandard	130 °C	-40 C		Toroidal	Surface Mount	0.71 A	17.78 mm	0.67 "	17.02 mm	0.7 "	1.7 Ohm
Pulse Electronics PE-53650NL	3.8 µH			Unshielded	Nonstandard	130 °C	-40 C	17.3 mOhm	Toroidal	Surface Mount	4.8 A	11.18 mm	0.435 in	11.05 mm	0.44 in		0.36 in	9.14 mm
Pulse Electronics PE-53613NLT	645 µH	9.91 mm	0.39 "	Unshielded	Nonstandard	130 °C	-40 C		Toroidal	Surface Mount	0.74 A	15.75 mm	0.6 in	15.24 mm	0.62 in	1.25 Ohm
Pulse Electronics PE-53633NLT	29.1 µH	9.91 mm	0.39 "	Unshielded	Nonstandard	130 °C	-40 C	100 mOhm	Toroidal	Surface Mount	2.7 A	15.75 mm	0.6 in	15.24 mm	0.62 in
Pulse Electronics PE-53602NLT	29.7 µH			Unshielded	Nonstandard	130 °C	-40 C		Toroidal	Surface Mount	1.4 A	11.18 mm	0.435 in	11.05 mm	0.44 in		0.36 in	9.14 mm

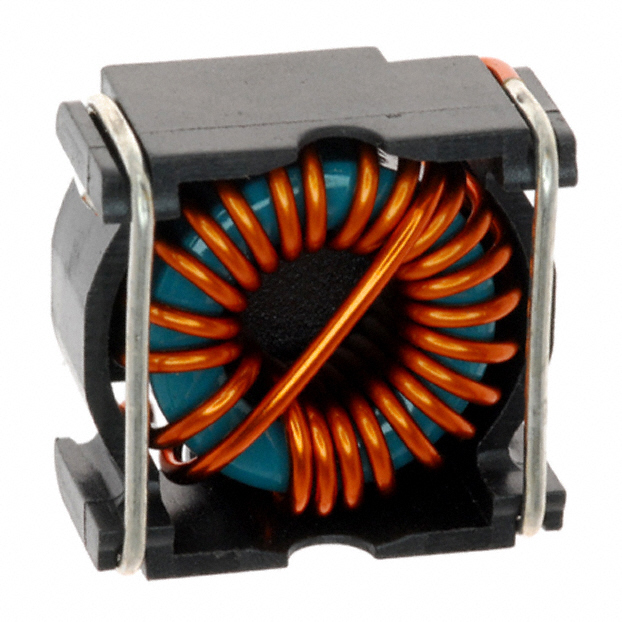

Pulse Electronics PE-53663NL	9.3 µH	9.91 mm	0.39 "	Unshielded	Nonstandard	130 °C	-40 C		Toroidal	Surface Mount	7.2 A	17.78 mm	0.67 "	17.02 mm	0.7 "	18.7 mOhm
Pulse Electronics PE-53630NLT	1.01 µH	6.86 mm	0.27 in	Unshielded	Nonstandard	130 °C	-40 C		Toroidal	Surface Mount	3.4 A	8.64 mm	0.34 in	8.64 mm	0.34 in	11 mOhm
Pulse Electronics PE-53651NL				Unshielded	Nonstandard	130 °C	-40 C		Toroidal	Surface Mount	5.4 A	14.48 mm		14.35 mm		17.7 mOhm	0.36 in	9.14 mm	0.565 "	0.57 in

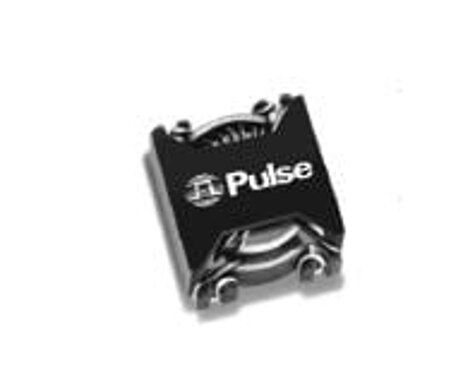

Pulse Electronics PE-53652NLT	9 µH	9.91 mm	0.39 "	Unshielded	Nonstandard	130 °C	-40 C	28 mOhm	Toroidal	Surface Mount	5.5 Amps	15.75 mm	0.6 in	15.24 mm	0.62 in
