FB20R06 Series

Manufacturer: INFINEON

Catalog

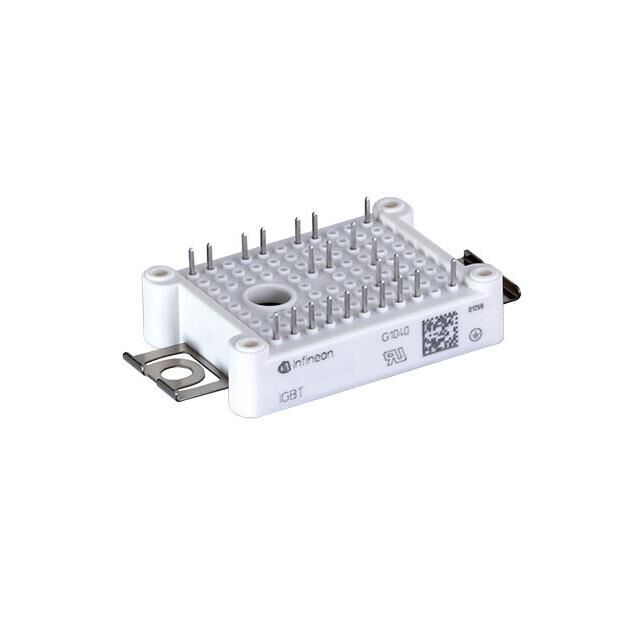

THE FB20R06W1E3 IS A PIM IGBT3 - E3 MODULE IN A EASYPIM™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 600 V AND 20 A.

Part	IGBT Type	Input Capacitance (Cies) @ Vce	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Vce(on) (Max) @ Vge, Ic [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Input	Package / Case	Power - Max [Max]
INFINEON FB20R06W1E3BOMA1	Trench Field Stop	1.1 nF	Chassis Mount	-40 C	150 °C	2 V	Module	29 A	Three Phase Inverter	600 V	1 mA	Standard	Module	94 W
INFINEON FB20R06W1E3B11HOMA1	Trench Field Stop	1.1 nF	Chassis Mount	-40 C	150 °C	2 V	Module	29 A	Three Phase Inverter	600 V	1 mA	Standard	Module	94 W
INFINEON FB20R06KL4B1BOMA1
