77249 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

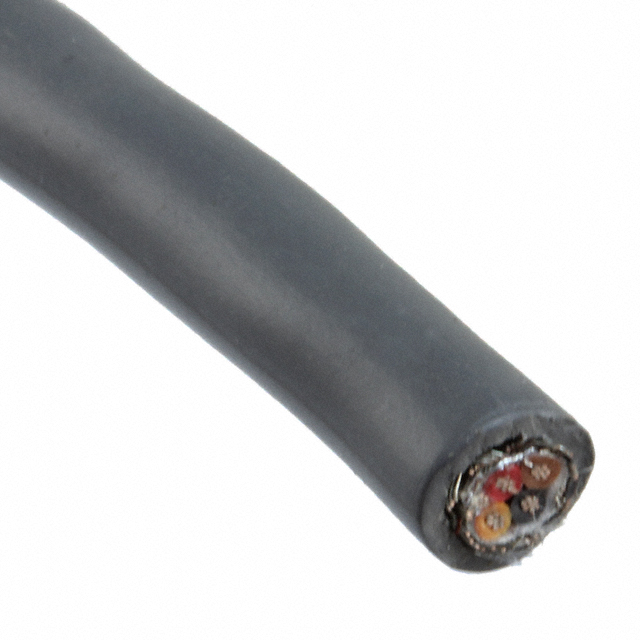

ECOGEN ECOCABLE 26AWG 4COND FOIL/BRAID MPPE 77249 SL 199 BULK FT
| Part | Shield Coverage | Shield Material | Voltage | Conductor Strand [x] | Conductor Strand [x] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Insulation | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Ratings | Wire Gauge | Cable Type | Conductor Material | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | 600 V | 34 AWG | 7 | 4 | 0.19 in | 4.83 mm | Slate | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | Braid Foil | ISO 10993 UL Style 21915 | 26 AWG | Multi-Conductor | Copper Tinned | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C |
