50016 Series

Catalog

CABLE GLAND 10-14MM PG16

Part	Thread Size	Includes	Color	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Thread Length	Thread Length	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]

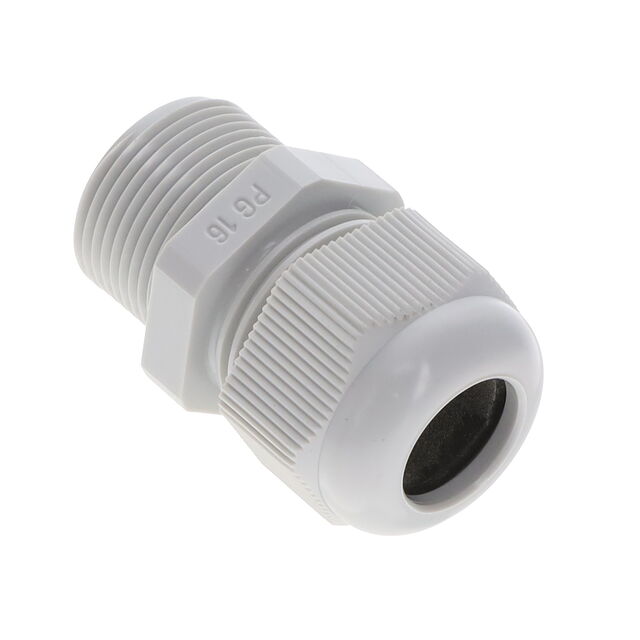

Jacob GmbH 50016/7035/15	PG16	Sealing Ring	Gray	10 mm	0.394 "	Cable Gland	0.591 in	15 mm	-40 C	100 °C	IP68 - Dust Tight Waterproof	14 mm	0.551 in

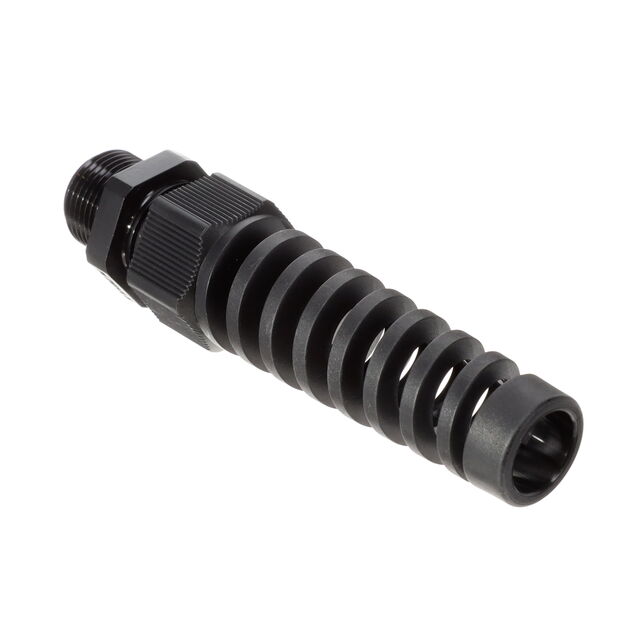

Jacob GmbH 50016M20BSSW	M20x1.5	Strain Relief	Black	10 mm	0.394 "	Cable Gland	0.591 in	15 mm	-40 C	100 °C	IP68 - Dust Tight Waterproof	14 mm	0.551 in

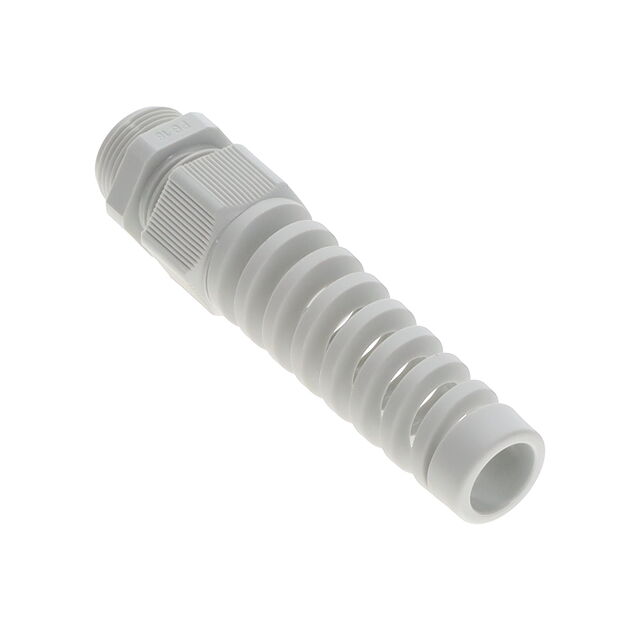

Jacob GmbH 50016PABS7035	PG16	Strain Relief	Gray	10 mm	0.394 "	Cable Gland	0.394 in	10 mm	-40 C	100 °C	IP68 - Dust Tight Waterproof	14 mm	0.551 in

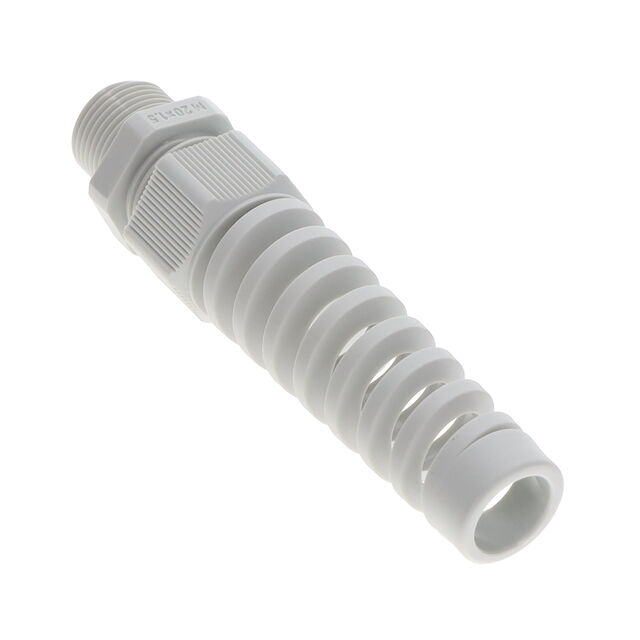

Jacob GmbH 50016M20BS7035	M20x1.5	Strain Relief	Gray	10 mm	0.394 "	Cable Gland	0.591 in	15 mm	-40 C	100 °C	IP68 - Dust Tight Waterproof	14 mm	0.551 in
