M3BYK Series

Catalog

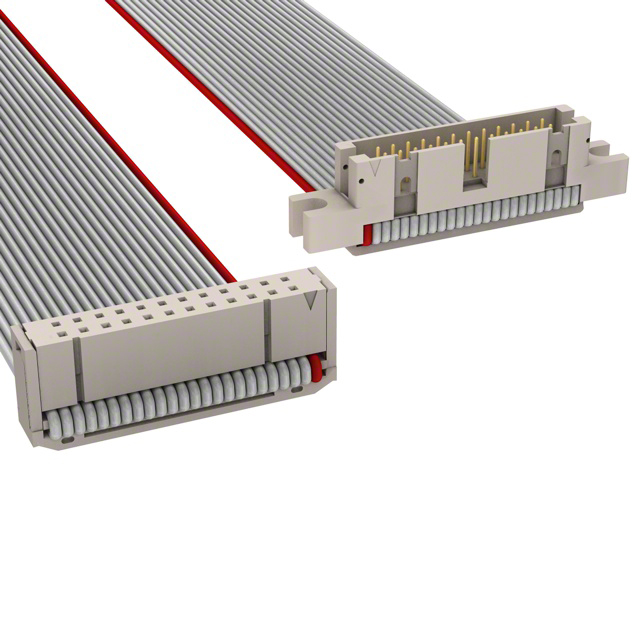

IDC CABLE - MSR16K/MC16F/MPD16K

Part	Length	Length	Color	Pitch - Cable	Pitch - Cable	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Pitch - Connector	Pitch - Connector	Number of Positions	Cable Termination	Contact Finish	Shielding	Length [x]	Length [x]	Length
3M Electronic Specialty M3BYK-1620K	1.67 ft	508 mm	Multiple Twisted Pair (Flat)	0.05 in	1.27 mm	Socket to Plug	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	2	0.1 in	2.54 mm	16	IDC	Gold	Unshielded
3M Electronic Specialty M3BYK-5018J				0.05 in	1.27 mm	Socket to Plug	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	2	0.1 in	2.54 mm	50	IDC	Gold	Unshielded	457.2 mm	1.5 ft
3M Electronic Specialty M3BYK-1618R			Multiple Ribbon	0.05 in	1.27 mm	Socket to Plug	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	2	0.1 in	2.54 mm	16	IDC	Gold	Unshielded	457.2 mm	1.5 ft
3M Electronic Specialty M3BYK-1036J	3 ft	91.44 cm		0.05 in	1.27 mm	Socket to Plug	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	2	0.1 in	2.54 mm	10	IDC	Gold	Unshielded
3M Electronic Specialty M3BYK-2018J				0.05 in	1.27 mm	Socket to Plug	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	2	0.1 in	2.54 mm	20	IDC	Gold	Unshielded	457.2 mm	1.5 ft
3M Electronic Specialty M3BYK-2020K	1.67 ft	508 mm	Multiple Twisted Pair (Flat)	0.05 in	1.27 mm	Socket to Plug	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	2	0.1 in	2.54 mm	20	IDC	Gold	Unshielded
3M Electronic Specialty M3BYK-4006J	0.5 '	152.4 mm		0.05 in	1.27 mm	Socket to Plug	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	2	0.1 in	2.54 mm	40	IDC	Gold	Unshielded			6 "
3M Electronic Specialty M3BYK-5060K	60 in	1.52 m	Multiple Twisted Pair (Flat)	0.05 in	1.27 mm	Socket to Plug	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	2	0.1 in	2.54 mm	50	IDC	Gold	Unshielded
3M Electronic Specialty M3BYK-2418J				0.05 in	1.27 mm	Socket to Plug	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	2	0.1 in	2.54 mm	24	IDC	Gold	Unshielded	457.2 mm	1.5 ft
3M Electronic Specialty M3BYK-4060K	60 in	1.52 m	Multiple Twisted Pair (Flat)	0.05 in	1.27 mm	Socket to Plug	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	2	0.1 in	2.54 mm	40	IDC	Gold	Unshielded
