2250128 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

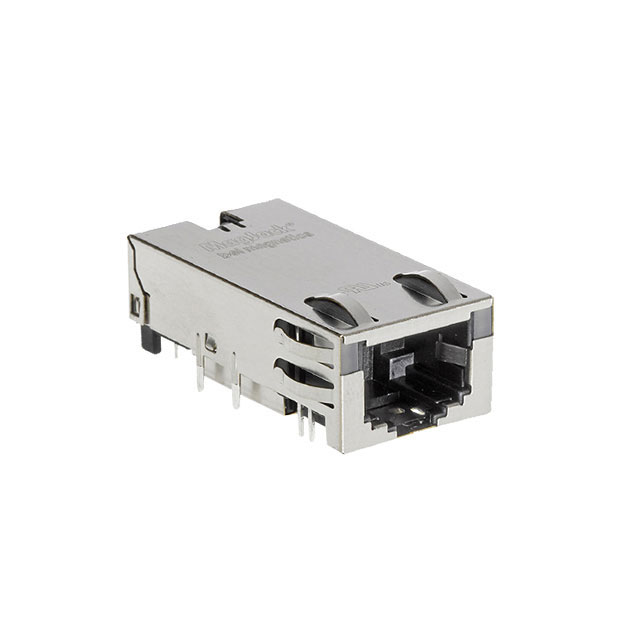

CONN JACK 1PORT 10G BASE-T PCB
| Part | Contact Finish | Tab Direction | LED Color | Height Above Board [z] | Height Above Board [z] | Contact Material | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination | Orientation | Connector Type | Features | Housing Material | Number of Rows | Shield Material | Shielding | Contact Finish Thickness | Contact Finish Thickness | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Gold | Down | Green Yellow | 0.46 in | 11.68 mm | Phosphor Bronze | 1 | 70 °C | 0 °C | Through Hole | Solder | 90 ° | RJ45 | Board Guide | Polyamide (PA) Nylon | 1 | Brass | EMI Finger Shielded | 50 µin | 1.27 µm | 10G Base-T |
Bel Fuse Inc. | Gold | Down | Green Yellow | 0.46 in | 11.68 mm | Phosphor Bronze | 1 | 70 °C | 0 °C | Through Hole | Solder | 90 ° | RJ45 | Board Guide | 1 | EMI Finger Shielded | 10G Base-T |
