ISL28227 Series

Precision Dual Low Noise Operational Amplifiers

Manufacturer: Renesas Electronics Corporation

Catalog

Precision Dual Low Noise Operational Amplifiers

Part	Package / Case	Package / Case [custom]	Package / Case	Amplifier Type	Slew Rate	Voltage - Input Offset	Current - Supply	Current - Output / Channel	Voltage - Supply Span (Min) [Min]	Mounting Type	Number of Circuits	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Current - Input Bias	Operating Temperature [Max]	Operating Temperature [Min]	Gain Bandwidth Product	Package / Case [y]	Package / Case [x]	Board Type	Current - Supply (Main IC)	Supplied Contents	Utilized IC / Part	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Channels per IC
Renesas Electronics Corporation ISL28227FUBZ-T13	8-MSOP 8-TSSOP	0.118 in	3 mm	General Purpose	3.6 V/µs	10 µV	2.2 mA	45 mA	4.5 V	Surface Mount	2	8-MSOP	40 V	1 nA	125 °C	-40 °C	10 MHz
Renesas Electronics Corporation ISL28227FBZ-T7	8-SOIC			General Purpose	3.6 V/µs	10 µV	2.2 mA	45 mA	4.5 V	Surface Mount	2	8-SOIC	40 V	1 nA	125 °C	-40 °C	10 MHz	3.9 mm	0.154 in
Renesas Electronics Corporation ISL28227FUZ	8-MSOP 8-TSSOP	0.118 in	3 mm	General Purpose	3.6 V/µs	10 µV	2.2 mA	45 mA	4.5 V	Surface Mount	2	8-MSOP	40 V	1 nA	125 °C	-40 °C	10 MHz
Renesas Electronics Corporation ISL28227FUBZ	8-MSOP 8-TSSOP	0.118 in	3 mm	General Purpose	3.6 V/µs	10 µV	2.2 mA	45 mA	4.5 V	Surface Mount	2	8-MSOP	40 V	1 nA	125 °C	-40 °C	10 MHz
Renesas Electronics Corporation ISL28227FUBZ-T7A	8-MSOP 8-TSSOP	0.118 in	3 mm	General Purpose	3.6 V/µs	10 µV	2.2 mA	45 mA	4.5 V	Surface Mount	2	8-MSOP	40 V	1 nA	125 °C	-40 °C	10 MHz
Renesas Electronics Corporation ISL28227FUZ-T7	8-MSOP 8-TSSOP	0.118 in	3 mm	General Purpose	3.6 V/µs	10 µV	2.2 mA	45 mA	4.5 V	Surface Mount	2	8-MSOP	40 V	1 nA	125 °C	-40 °C	10 MHz
Renesas Electronics Corporation ISL28227FUBZ-T7	8-MSOP 8-TSSOP	0.118 in	3 mm	General Purpose	3.6 V/µs	10 µV	2.2 mA	45 mA	4.5 V	Surface Mount	2	8-MSOP	40 V	1 nA	125 °C	-40 °C	10 MHz
Renesas Electronics Corporation ISL28227FBZ	8-SOIC			General Purpose	3.6 V/µs	10 µV	2.2 mA	45 mA	4.5 V	Surface Mount	2	8-SOIC	40 V	1 nA	125 °C	-40 °C	10 MHz	3.9 mm	0.154 in
Renesas Electronics Corporation ISL28227FBZ-T7A	8-SOIC			General Purpose	3.6 V/µs	10 µV	2.2 mA	45 mA	4.5 V	Surface Mount	2	8-SOIC	40 V	1 nA	125 °C	-40 °C	10 MHz	3.9 mm	0.154 in

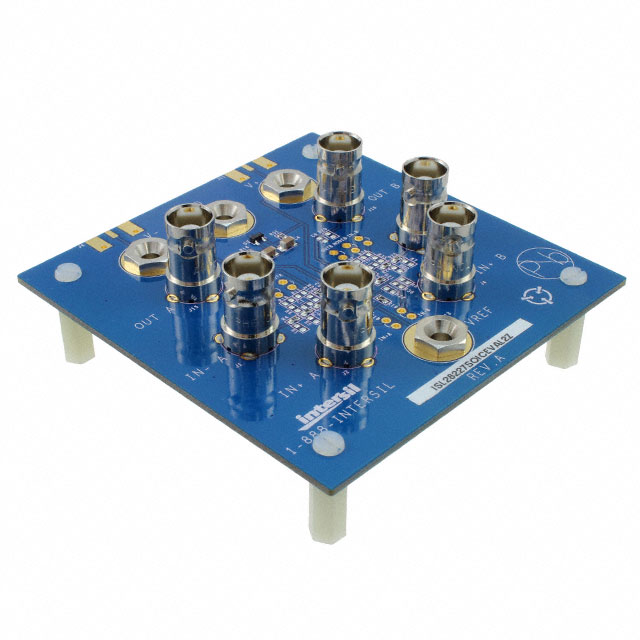

Renesas Electronics Corporation ISL28227SOICEVAL2Z				General Purpose	3.6 V/µs															Fully Populated	2.2 mA	Board(s)	ISL28227	20 V 40 V	-2.25 V 4.5 V	2 - Dual

Description

The ISL28227 and ISL28227SEH are very high precision amplifiers featuring very low noise, low offset voltage, low input bias current, and low temperature drift making them the ideal choice for applications requiring both high DC accuracy and AC performance. The combination of precision, low noise and small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision active filters, medical and analytical instrumentation, precision power supply controls, and industrial controls. The ISL28227 dual op amps are available in 8 Ld SOIC, TDFN and MSOP packages. Additionally, this device is offered in standard pin configurations and operate over the extended temperature range to -40 °C to +125 °C. The ISL28227SEH is available in a 10 Ld hermetic ceramic flatpack package, is offered in an industry standard pin configuration, and operates over the extended temperature range from -55 °C to +125 °C.
