AHC Series

Catalog

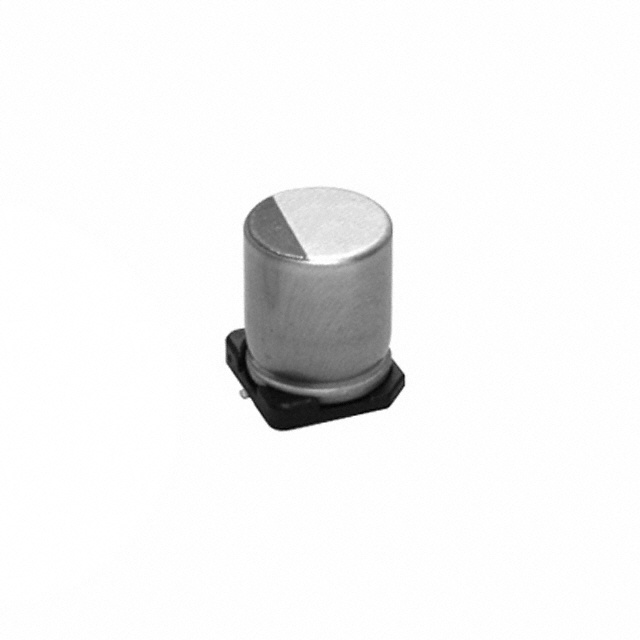

CAP, 47UF, 35V, ALU ELEC SMD, HYBRID ROHS COMPLIANT: YES

Part	Capacitance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Type	Lifetime @ Temp.	Package / Case	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Applications	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Height - Seated (Max)
KYOCERA AVX AHC0609470M035R	47 µF	20 %	-55 C	125 °C	Hybrid	2000 Hrs	Radial Can - SMD	35 V	0.248 "	6.3 mm	Surface Mount	General Purpose	0.26 in	6.6 mm	6.6 mm	0.26 in	0.335 "	8.5 mm
KYOCERA AVX AHC0609101M025R	100 µF	20 %	-55 C	125 °C	Hybrid	4000 Hrs	Radial Can - SMD	25 VDC	0.248 "	6.3 mm	Surface Mount	General Purpose	0.26 in	6.6 mm	6.6 mm	0.26 in	0.386 in		1.4 A	70 mA	30 mOhms	9.8 mm
KYOCERA AVX AHC0609680M035R	68 µF	20 %	-55 C	125 °C	Hybrid	4000 Hrs	Radial Can - SMD	35 V	0.248 "	6.3 mm	Surface Mount	General Purpose	0.26 in	6.6 mm	6.6 mm	0.26 in	0.386 in		1.2 A	60 mA	40 mOhm	9.8 mm
