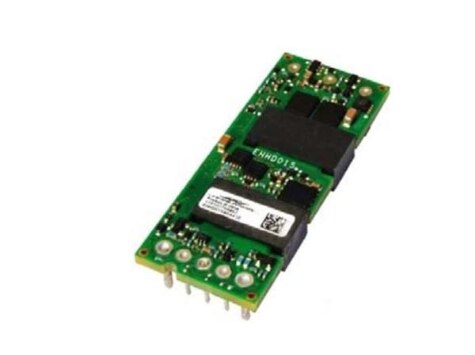

Isolated DC/DC Converters - Through Hole 75W 18-75Vin 5V 15A Eighth Brick, Negative Logic, Through Hole, 2.79mm Pin, Auto restart, Neg Logic, two side conformal coating
Isolated DC/DC Converters - Through Hole 75W 18-75Vin 5V 15A Eighth Brick, Negative Logic, Through Hole, 2.79mm Pin, Auto restart, Neg Logic, two side conformal coating
Isolated DC/DC Converters - Through Hole 75W 18-75Vin 5V 15A Eighth Brick, Negative Logic, Through Hole, 2.79mm Pin, Auto restart, Neg Logic, two side conformal coating
| Part | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Number of Outputs | Efficiency | Approval Agency | Power (Watts) | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Mounting Type | Supplier Device Package | Type | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output 1 | Applications | Control Features | Package / Case | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | Adjustable Output Remote On/Off Remote Sense | -40 °C | 85 °C | 2250 VDC | 1 | 90.5 % | CE | 75 W | 75 V | 18 V | Through Hole | Eighth Brick | Isolated Module | 15 A | 22.8 mm | 0.9 in | 57.9 mm | 2.28 " | 0.3 in | 7.6 mm | 5 V | ITE (Commercial) | Active Low Enable | Eighth Brick | 60950-1 |
