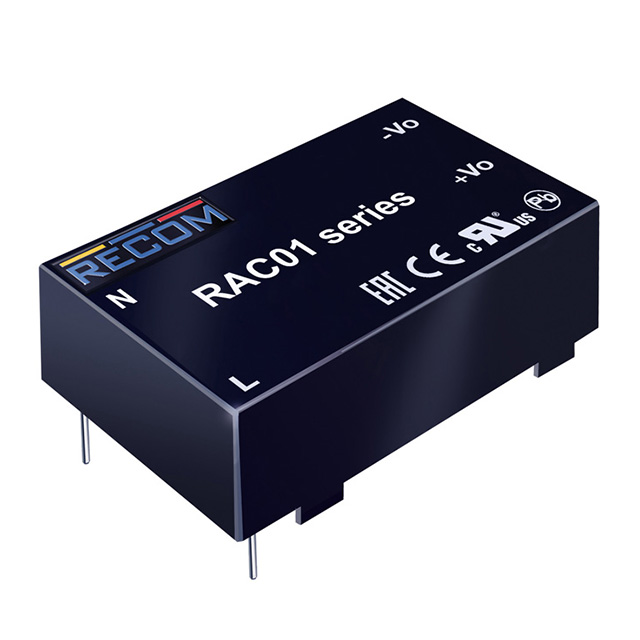

RAC01-24 Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC CONVERTER 24V 1W
| Part | Load Regulation | Weight [diameter] | Weight [diameter] | Line Regulation | Features | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Outputs | Approval Agency | Package / Case | Mounting Type | Efficiency | Applications | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 6 % | 0.055 lb | 24.95 g | 2 % | SCP | 80 VAC | 264 VAC | 42 mA | 85 °C | -25 °C | 24 V | 0.71 in | 18 mm | 0.87 in | 22.2 mm | 1.33 in | 33.7 mm | 1 | CE EN UL | 4-DIP Module | Through Hole | 73 % | ITE (Commercial) | Enclosed |
