ADT7420 Series

Catalog

MINI TEMP SENSOR BRD

Part	Supplied Contents	Interface	Sensitivity	Contents	Sensor Type	Package / Case	Mounting Type	Output Type	Sensing Temperature - Local [Min]	Sensing Temperature - Local [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Resolution	Features	Test Condition [Max]	Test Condition [Min]	Test Condition [Max]	Test Condition [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Accuracy - Highest (Lowest)	Platform	Type	Function

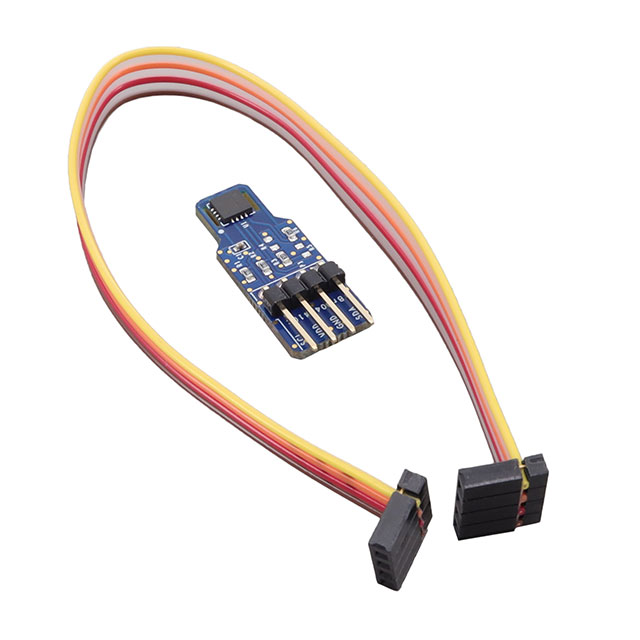

Analog Devices Inc./Maxim Integrated EVAL-ADT7420MBZ	Board(s)	I2C	0.25 °C	Board(s)	Temperature
Analog Devices Inc./Maxim Integrated ADT7420UCPZ-R2					Digital Local	16-WQFN Exposed Pad CSP	Surface Mount	I2C	-40 °F	150 °C	5.5 V	2.7 V	16-LFCSP-WQ (4x4)	15 b	One-Shot Output Switch Programmable Limit Programmable Resolution Shutdown Mode	85 °C	-10 °C	125 °C	-40 °C	-40 C	150 °C	0.2 °C 0.6 °C
Analog Devices Inc./Maxim Integrated EVAL-ADT7420-PMDZ				Board(s)																			Pmod™	Sensor	Temperature
Analog Devices Inc./Maxim Integrated ADT7420UCPZ-RL7					Digital Local	16-WQFN Exposed Pad CSP	Surface Mount	I2C	-40 °F	150 °C	5.5 V	2.7 V	16-LFCSP-WQ (4x4)	15 b	One-Shot Output Switch Programmable Limit Programmable Resolution Shutdown Mode	85 °C	-10 °C	125 °C	-40 °C	-40 C	150 °C	0.2 °C 0.6 °C
