9AS7A Series

Catalog

ELECTROMECHNICAL POWER RELAYS, S

Part	Coil Resistance	Contact Material	Switching Voltage	Termination Style	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Seal Rating	Release Time	Contact Form	Must Release Voltage	Operate Time	Coil Current	Coil Voltage	Approval Agency	Contact Rating (Current)	Load - Max Switching	Relay Type	Coil Type	Mounting Type	Must Operate Voltage

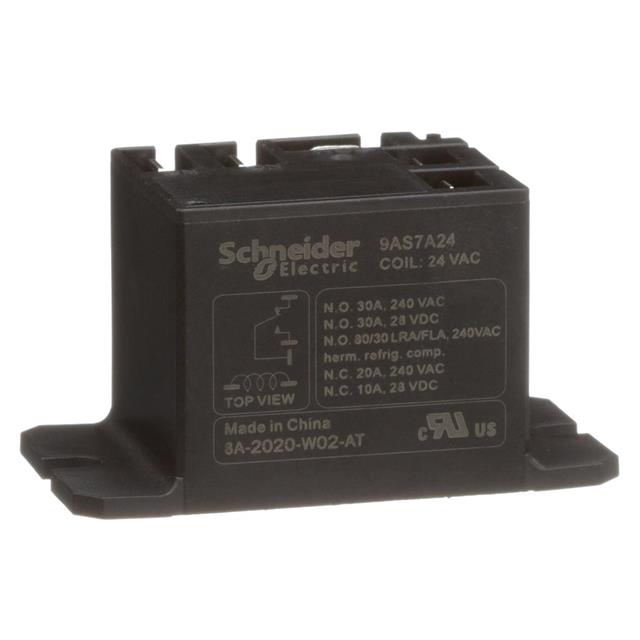

SCHNEIDER ELECTRIC 9AS7A24	100 Ohms	Silver Alloy	28 VDC 277 VAC	0.187 in 0.25 in	Quick Connect	40 °C	-40 C	Sealed - Fully	10 ms	SPDT (1 Form C)	4.8 VAC	20 ms	24 mA	24 VAC	UL	30 A	840 W 8310 VA	General Purpose	Non Latching	Chassis Mount

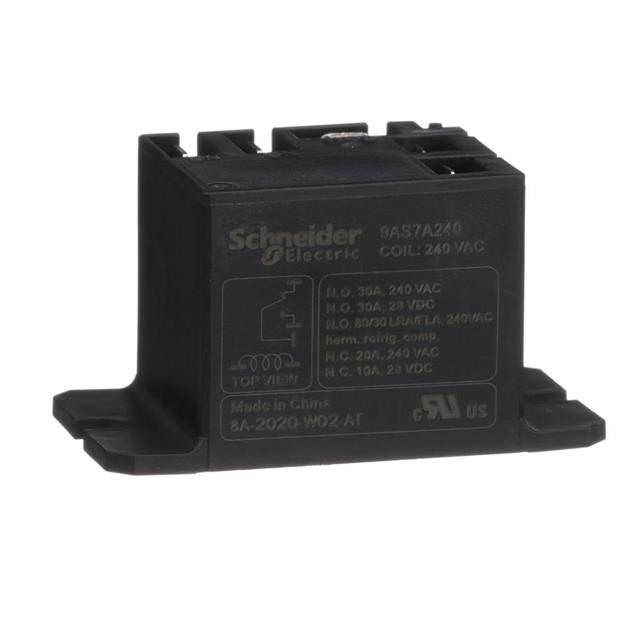

SCHNEIDER ELECTRIC 9AS7A240	13.49 kOhms	Silver Alloy	28 VDC 277 VAC	0.187 in 0.25 in	Quick Connect	40 °C	-40 C	Sealed - Fully	10 ms	SPDT (1 Form C)	48 VAC	20 ms	17.8 mA	240 VAC/DC	UL	30 A	840 W 8310 VA	General Purpose	Non Latching	Chassis Mount	204 VAC

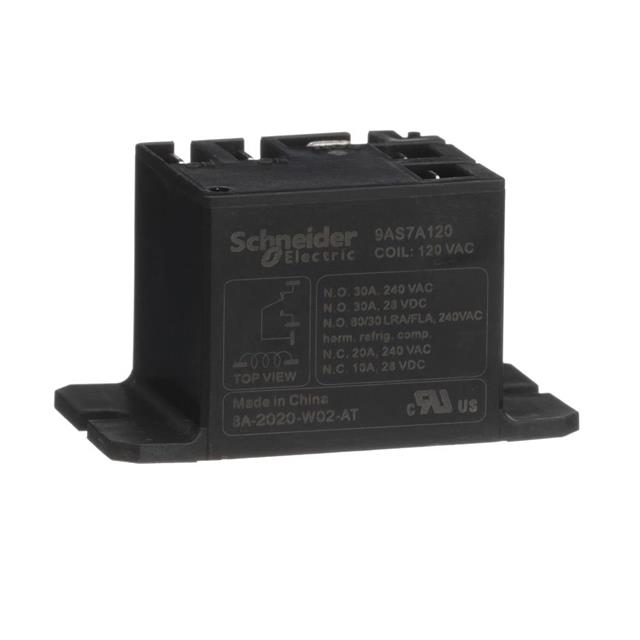

SCHNEIDER ELECTRIC 9AS7A120	2500 Ohms	Silver Alloy	28 VDC 277 VAC	0.187 in 0.25 in	Quick Connect	40 °C	-40 C	Sealed - Fully	10 ms	SPDT (1 Form C)	24 VAC	20 ms	48 mA	120 VAC	UL	30 A	840 W 8310 VA	General Purpose	Non Latching	Chassis Mount	102 VAC
