ZWQ130 Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 4 OUTPUT, 149.6W @ 30CFM, 130 W, 85V AC TO 265V AC

Part	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Features	Approval Agency	Number of Outputs	Voltage - Output 3	Power (Watts)	Voltage - Isolation	Current - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Current - Output 4	Efficiency	Voltage - Output 4	Voltage - Output 2	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Type	Current - Output 3	Mounting Type
TDK Corporation ZWQ130-5223/L	ITE (Commercial)	8.86 "	35 mm	225 mm	1.38 in	106 mm	4.17 "	Adjustable Output PFC Universal Input	CE	4	-12 V	130 W	3000 V	4 A	-10 °C	60 °C	5 V	10 A	72 %	3.3 V	12 V	15 A	265 VAC	85 VAC	Open Frame	4 A	Chassis Mount

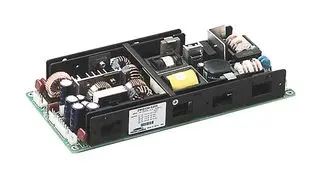

TDK Corporation ZWQ130-5225	ITE (Commercial)	8.86 "	35 mm	225 mm	1.38 in	106 mm	4.17 "	Adjustable Output PFC Universal Input	CE	4	-12 V	130 W	3000 V	4 A	-10 °C	60 °C	5 V	10 A	72 %	5 V	12 V	15 A	265 VAC	85 VAC	Open Frame	4 A	Chassis Mount

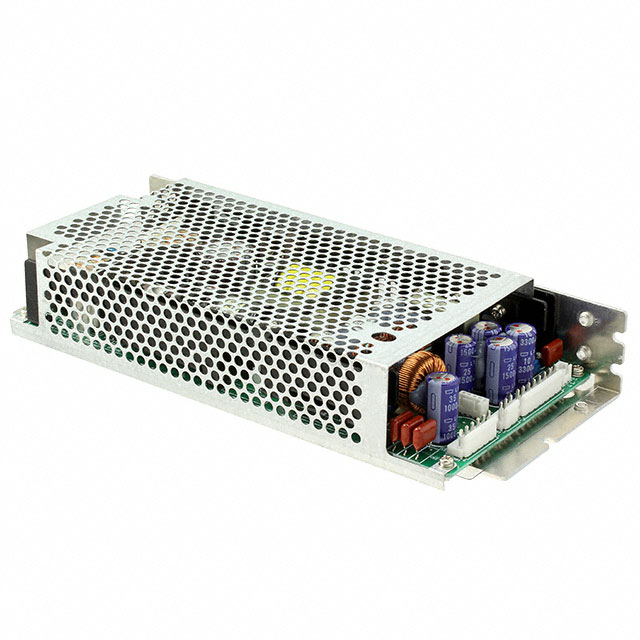

TDK Corporation ZWQ130-5225/A	ITE (Commercial)	8.86 "	35 mm	225 mm	1.38 in	106 mm	4.17 "	Adjustable Output PFC Universal Input	CE	4	-12 V	130 W	3000 V	4 A	-10 °C	60 °C	5 V	10 A	72 %	5 V	12 V	15 A	265 VAC	85 VAC	Enclosed	4 A	Chassis Mount
TDK Corporation ZWQ130-5223/A	ITE (Commercial)	8.86 "	35 mm	225 mm	1.38 in	106 mm	4.17 "	Adjustable Output PFC Universal Input	CE	4	-12 V	130 W	3000 V	4 A	-10 °C	60 °C	5 V	10 A	72 %	3.3 V	12 V	15 A	265 VAC	85 VAC	Enclosed	4 A	Chassis Mount
TDK Corporation ZWQ130-5225/L	ITE (Commercial)	8.86 "	35 mm	225 mm	1.38 in	106 mm	4.17 "	Adjustable Output PFC Universal Input	CE	4	-12 V	130 W	3000 V	4 A	-10 °C	60 °C	5 V	10 A	72 %	5 V	12 V	15 A	265 VAC	85 VAC	Open Frame	4 A	Chassis Mount
