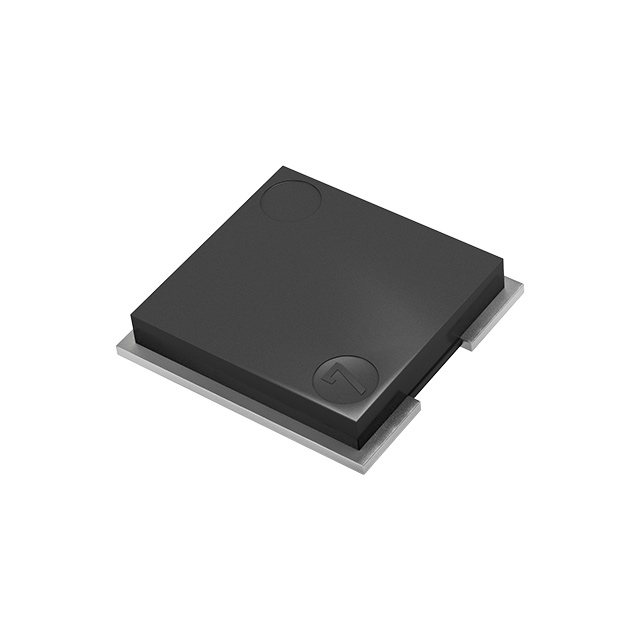

ERJ-MS6 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RES 0.002 OHM 5W 2625 WIDE
| Part | Resistance | Temperature Coefficient | Tolerance | Features | Ratings | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Supplier Device Package | Number of Terminations [custom] | Package / Case | Composition | Height - Seated (Max) [Max] | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 2 mOhms | 75 ppm/°C | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | AEC-Q200 | 0.252 " | 6.4 mm | 6.8 mm | 0.268 in | -65 ░C | 170 °C | 5 W | 2526 | 2 | 2526 Wide 2625 (6864 Metric) | Metal Element | 0.053 " | 1.35 mm |
Panasonic Electronic Components | 0.5 mOhms | 75 ppm/°C | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | AEC-Q200 | 0.252 " | 6.4 mm | 6.8 mm | 0.268 in | -65 ░C | 170 °C | 5 W | 2526 | 2 | 2526 Wide 2625 (6864 Metric) | Metal Element | 0.053 " | 1.35 mm |
