725-096 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 96POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Gender	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Contact Finish	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Mounting Type	Read Out	Number of Positions	Contact Material	Contact Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Type	Color
EDAC Inc. 725-096-522-201	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	48	Gold	0.1 "	2.54 mm	-40 C	105 ░C	2	Through Hole	Dual	96	Copper Alloy	Cantilever	Press-Fit	30 Áin	0.76 Ám	Non Specified - Dual Edge	Black
EDAC Inc. 725-096-540-201	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	48	Gold	0.1 "	2.54 mm	-40 C	105 ░C	2	Through Hole	Dual	96	Copper Alloy	Cantilever	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Non Specified - Dual Edge	Black

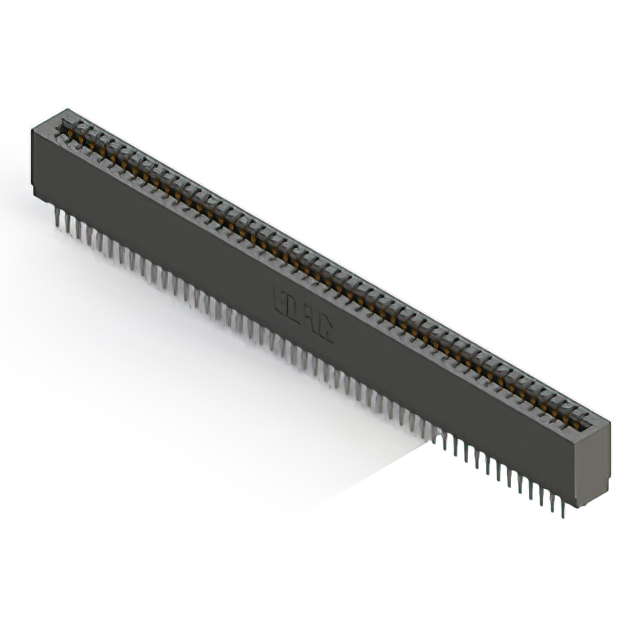

EDAC Inc. 725-096-525-201	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	48	Gold	0.1 "	2.54 mm	-40 C	105 ░C	2	Through Hole	Dual	96	Copper Alloy	Cantilever	Press-Fit	30 Áin	0.76 Ám	Non Specified - Dual Edge	Black
EDAC Inc. 725-096-541-201	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	48	Gold	0.1 "	2.54 mm	-40 C	105 ░C	2	Through Hole	Dual	96	Copper Alloy	Cantilever	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Non Specified - Dual Edge	Black
EDAC Inc. 725-096-520-201	Polyester Thermoplastic	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	48	Gold	0.1 "	2.54 mm	-40 C	105 ░C	2	Through Hole	Dual	96	Copper Alloy	Cantilever	Press-Fit	30 Áin	0.76 Ám	Non Specified - Dual Edge	Black
