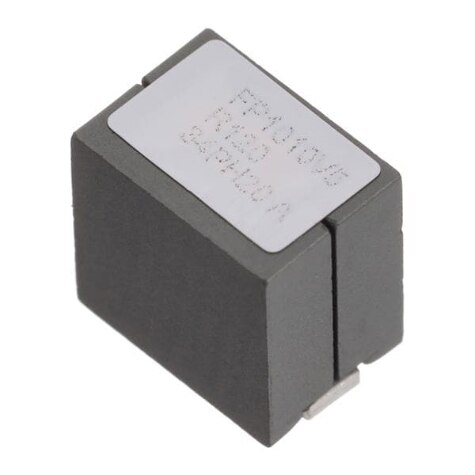

FP1010 Series
Power Inductors - SMD Flat Pac Type Power Inductor
Manufacturer: Eaton - Electronics Division
Catalog
Power Inductors - SMD Flat Pac Type Power Inductor
Beta
⌘K
Power Inductors - SMD Flat Pac Type Power Inductor
Power Inductors - SMD Flat Pac Type Power Inductor
Power Inductors - SMD Flat Pac Type Power Inductor
| Part | Material - Core | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Tolerance | Package / Case | Current Rating (Amps) | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Ferrite | 10 mm | 0.394 in | Shielded | 125 °C | -40 C | 150 nH | 10 % | Nonstandard | 68 A | Surface Mount | 0.382 " | 0.264 " | 9.7 mm | 6.7 mm | 203 mOhm | 100 kHz | 85 A |
Eaton - Electronics Division | Ferrite | 10 mm | 0.394 in | Shielded | 125 °C | -40 C | 100 nH | 10 % | Nonstandard | 68 A | Surface Mount | 0.382 " | 0.264 " | 9.7 mm | 6.7 mm | 203 mOhm | 100 kHz | 94 A |
 Eaton - Electronics Division | Ferrite | 10 mm | 0.394 in | Shielded | 125 °C | -40 C | 120 nH | 10 % | Nonstandard | 68 A | Surface Mount | 0.382 " | 0.264 " | 9.7 mm | 6.7 mm | 203 mOhm | 100 kHz | |
Eaton - Electronics Division | Ferrite | 10 mm | 0.394 in | Shielded | 125 °C | -40 C | 330 nH | 10 % | Nonstandard | 68 A | Surface Mount | 0.382 " | 0.264 " | 9.7 mm | 6.7 mm | 203 mOhm | 100 kHz | 35 A |
