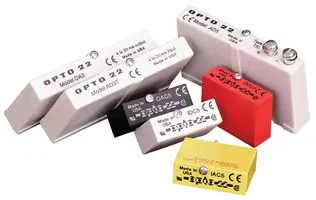

G1 Series

Manufacturer: OPTO 22

Catalog

Catalog

I/O MODULES G1 AC DIGITAL OUTPUT, 12-140 VAC, 15 VDC LOGIC

Part	Voltage - Input	Voltage - Output	Current - Output	Type	Current - Input	Color	Style	Number of Channels	Connector Type	Mounting Type	Turn On Time	Voltage - Output (Min)	Voltage - Output (Max)	Turn Off Time	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Maximum	Voltage - Input (DC) Minimum
OPTO 22 OAC15	15 V	120 V	2 A	AC Output Module	15 mA	Black	Standard
OPTO 22 OAC24	24 V	120 V	2 A	AC Output Module	18 mA	Black	Standard
OPTO 22 PB32DEC							Quad	8	Screw Terminal Blocks	Standoffs
OPTO 22 ODC5P	5 V		2 A	DC Output Module	12 mA	Red	Standard				100 µs	5 V	60 V	0.75 ms
OPTO 22 IDC24		24 V	15 mA	AC Input Module	25 mA	Yellow	Standard				5 ms			5 ms	32 VAC	12 V
OPTO 22 DA5
OPTO 22 PB16C							G1	16	Screw Terminal Blocks	Standoffs
OPTO 22 IDC5D		5 VDC	12 mA	DC Input Module	30 mA	White	Standard				1 ms			1.5 ms			28 VDC	2.5 V
OPTO 22 IAC15A		15 V	15 mA	AC Input Module	5 mA	Yellow	Standard				20 ms			20 ms	280 V	180 VAC
OPTO 22 AD2T
