GI3.3 Series

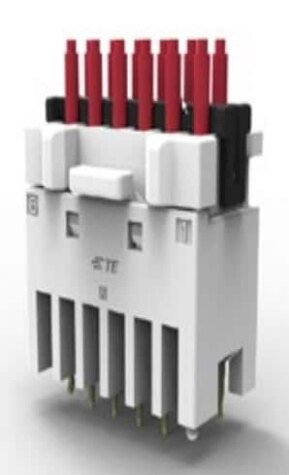

Headers & Wire Housings GI CONN 3.3 HEADER ASSY 8P
Manufacturer: TE Connectivity AMP Connectors
Catalog
Headers & Wire Housings GI CONN 3.3 HEADER ASSY 8P
Headers & Wire Housings GI CONN 3.3 HEADER ASSY 8P
Headers & Wire Housings GI CONN 3.3 HEADER ASSY 8P
Headers & Wire Housings GI CONN 3.3 HEADER ASSY 8P
| Part | Contact Type | Mounting Type | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Row Spacing | Row Spacing | Pitch | Pitch | Fastening Type | Contact Termination | Color | Insulation Material | Number of Positions | Contact Material | Overall Contact Length [x] | Overall Contact Length [x] | Features | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Shrouding | Termination | Style | Current Rating (Amps) | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height | Insulation Height | Contact Finish - Post | Voltage Rating | Insulation Color | Contact Shape | Number of Positions Loaded | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | Female Socket | Free Hanging (In-Line) | 2 | -30 ░C | 105 ░C | Plug | 5.2 mm | 0.205 in | 0.13 in | 3.3 mm | Latch Lock | Crimp | Blue | Glass Filled Nylon 6/6 Polyamide (PA66) | 8 | ||||||||||||||||||||||
TE Connectivity AMP Connectors | Male Pin | Through Hole | 2 | -30 ░C | 105 ░C | Header | Latch Holder | Glass Filled Nylon 6/6 Polyamide (PA66) | 8 | Brass | 14.6 mm | 0.575 in | Board Guide | 0.13 in | 3.3 mm | UL94 V-0 | Shrouded - 4 Wall | Kinked Pin Solder | Board to Cable/Wire | Varies by Wire Gauge | 5.2 mm | 0.205 in | 0.561 " | 14.25 mm | Tin | 250 VAC | Natural | Square | All | 0.118 in | 3 mm |
