2ED1321 Series
Manufacturer: INFINEON
Beta
⌘K
THE 2ED1321S12M IS A 1200 V, 2.3 A/4.6 A HIGH-SIDE/LOW-SIDE GATE DRIVER IC WITH INTEGRATED BOOTSTRAP DIODE AND OCP.
| Part | Logic Voltage - VIL, VIH [custom] | Logic Voltage - VIL, VIH [custom] | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Driven Configuration | Rise / Fall Time (Typ) | Rise / Fall Time (Typ) | Mounting Type | Input Type | Number of Drivers | Package / Case | Package / Case | Package / Case | Gate Type | Supplier Device Package | Channel Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

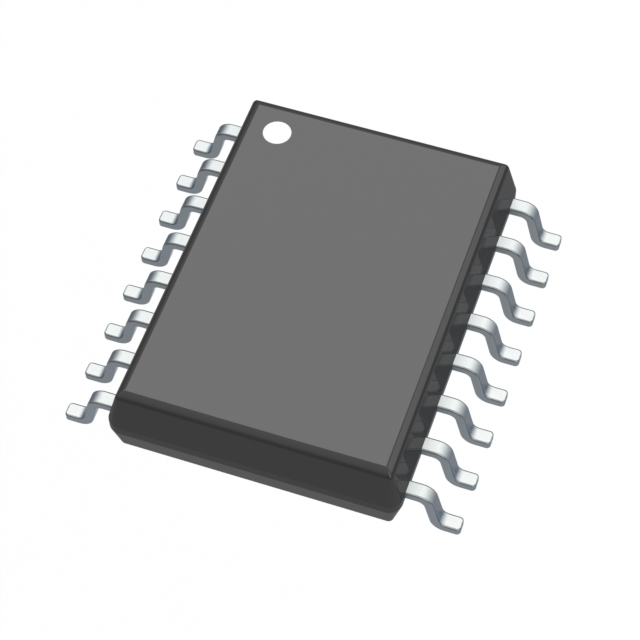

 INFINEON | 1.7 V | 1.1 V | 4.6 A | 2.3 A | 125 °C | -40 °C | 13 V | 20 V | Half-Bridge | 48 ns | 48 ns | Surface Mount | Non-Inverting | 2 | 16-SOIC | 7.5 mm | 0.295 " | IGBT SiC MOSFET | PG-DSO-16-U02 | Independent |
