DC0022/03 Series

Catalog

THERM PAD 63.5X50.8MM W/ADH GRAY

Part	Shelf Life Start	Shelf Life	Outline [x]	Outline [y]	Shape	Adhesive	Usage	Color	Type	Thermal Conductivity	Thickness	Thickness	Material	Backing, Carrier	Thickness

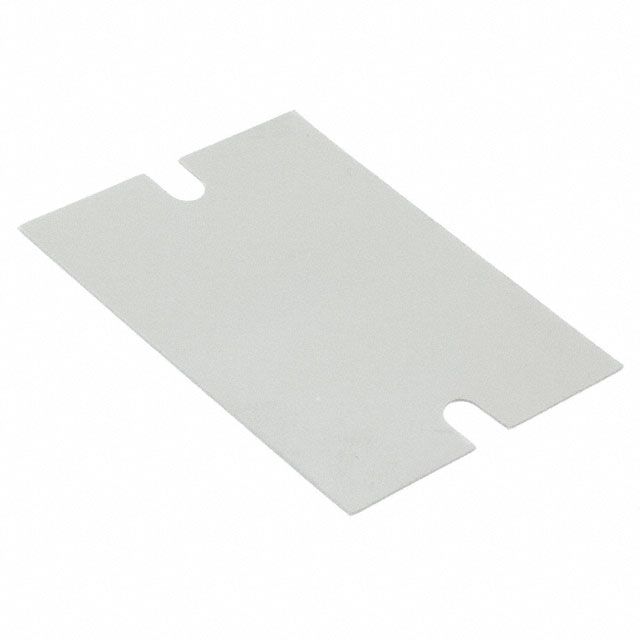

t-Global Technology DC0022/03-TG-A486G-0.3-2A	Date of Purchase	12 Months	63.5 mm	50.8 mm	Rectangular	Adhesive - Both Sides	Power Module	Gray	Die-Cut Pad Sheet	6 W/m-K	0.305 mm	0.012 in
t-Global Technology DC0022/03-TG-A482K-0.1-0	Date of Purchase	24 Months	63.5 mm	50.8 mm	Rectangular		Power Module	Red	Die-Cut Pad Sheet	2.3 W/m-K	0.1 mm	0.0039 in	Silicone

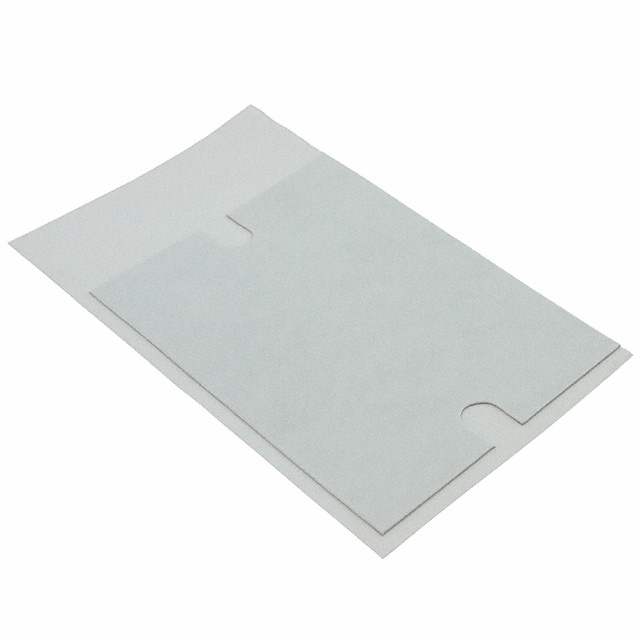

t-Global Technology DC0022/03-TI900-0.12-2A		24 Months	63.5 mm	50.8 mm	Rectangular	Adhesive - Both Sides	Power Module	White	Die-Cut Pad Sheet	1.8 W/m-K	5 mils	0.005 in	Silicone	Viscose

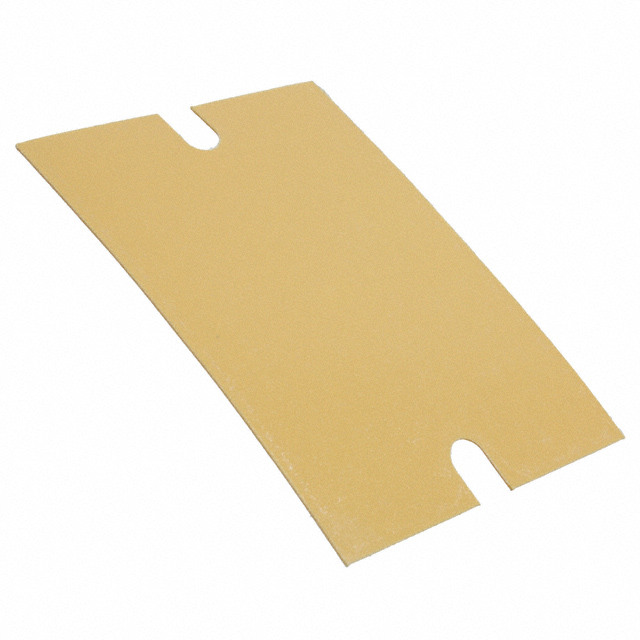

t-Global Technology DC0022/03-TG-A373F-0.25-2A		12 Months	63.5 mm	50.8 mm	Rectangular	Adhesive - Both Sides	Power Module	Yellow	Die-Cut Pad Sheet	1.4 W/m-K	10 mils				0.01 in
