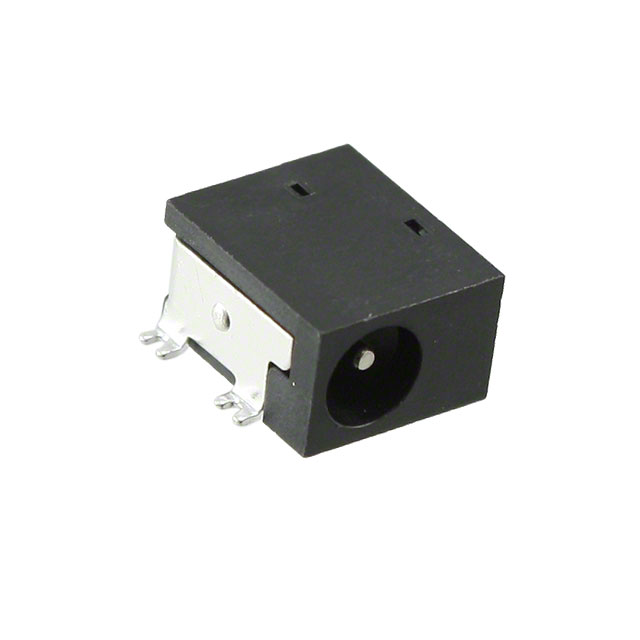

PJ-014 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
CONN DC POWER JACK F 2 POS SOLDER RA SMD 3 TERMINAL 1 PORT T/R
| Part | Mating Length/Depth | Mating Length/Depth | Material Flammability Rating | Mounting Type | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Internal Switch(s) | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Connector Type | Voltage - Rated | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shielding | Actual Diameter [diameter] | Actual Diameter [diameter] | Current Rating (Amps) | Gender | Body Color | Contact Material [custom] | Housing Material | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 0.232 in | 5.9 mm | UL94 V-0 | Right Angle Surface Mount | 1 mm 3.4 mm | 0.039 " 0.134 " | Single Switch Normally Closed | 2 | 3 | Jack | 24 VDC | Solder | 85 °C | -25 °C | Board Guide | Unshielded | 0.039 in 0.154 in | 1 mm 3.9 mm | 3.5 A | Male | ||||
 Same Sky (Formerly CUI Devices) | 0.232 in | 5.9 mm | UL94 V-0 | Right Angle Surface Mount | 1.3 mm 3.5 mm | 0.051 " 0.138 in | Single Switch Normally Closed | 2 | 3 | Jack | 24 VDC | Solder | 85 °C | -25 °C | Board Guide | Unshielded | 0.051 in 0.154 in | 1.3 mm 3.9 mm | 3.5 A | Male | Black | Brass Copper Alloy | Nylon 6T Polyamide (PA6T) | Silver |
Same Sky (Formerly CUI Devices) | 0.232 in | 5.9 mm | UL94 V-0 | Right Angle Surface Mount | 1.3 mm 3.5 mm | 0.051 " 0.138 in | Single Switch Normally Closed | 2 | 3 | Jack | 24 VDC | Solder | 85 °C | -25 °C | Board Guide | Unshielded | 0.051 in 0.154 in | 1.3 mm 3.9 mm | 3.5 A | Male | ||||
Same Sky (Formerly CUI Devices) | 0.232 in | 5.9 mm | UL94 V-0 | Right Angle Surface Mount | 1 mm 3.4 mm | 0.039 " 0.134 " | Single Switch Normally Closed | 2 | 3 | Jack | 24 VDC | Solder | 85 °C | -25 °C | Board Guide | Unshielded | 0.039 in 0.154 in | 1 mm 3.9 mm | 3.5 A | Male | Black | Brass Copper Alloy | Nylon 6T Polyamide (PA6T) | Silver |
