DL61H10 Series

Catalog

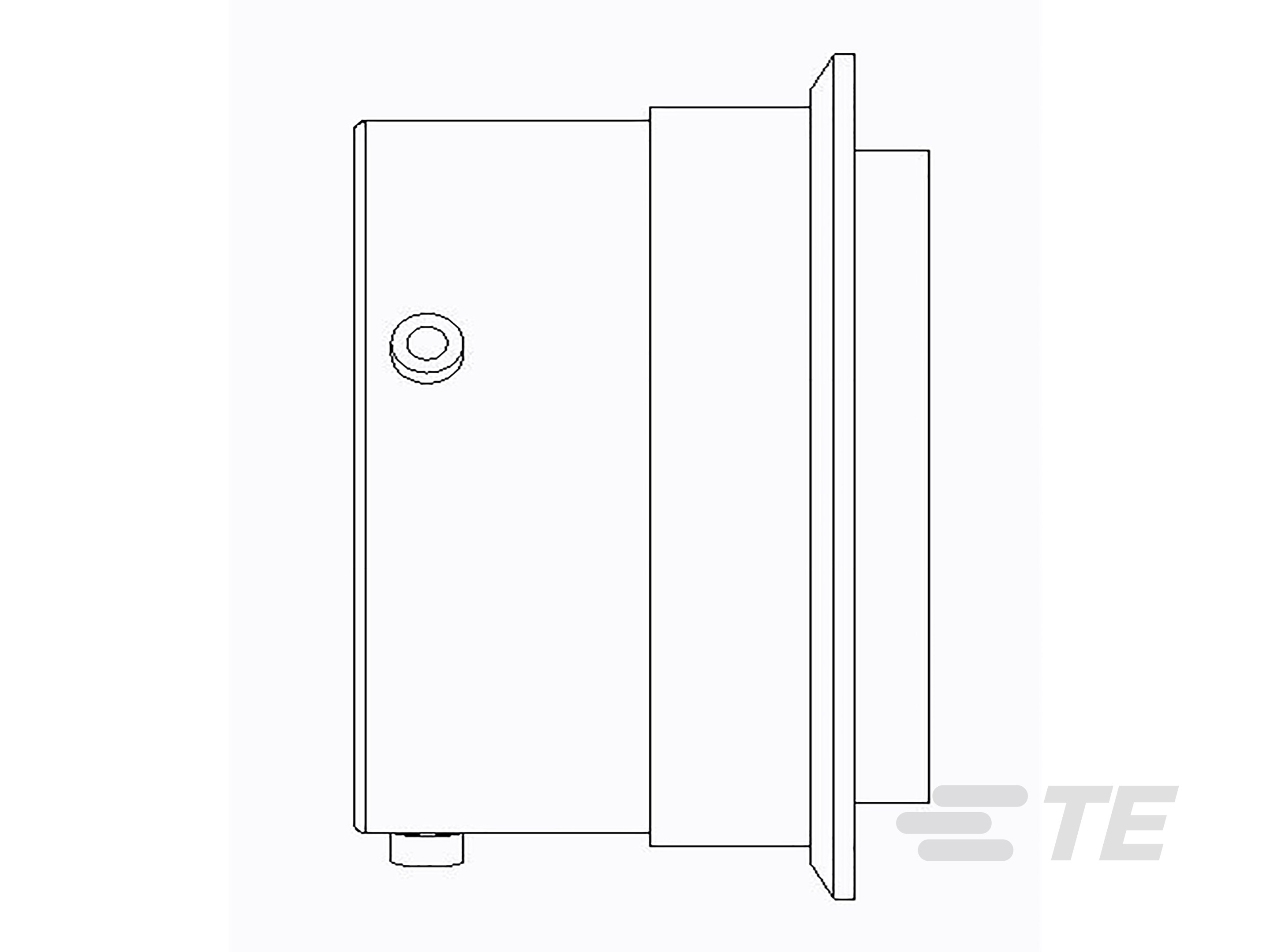

CONN CIRCULAR PIN SOLDER CUP ST FLANGE MOUNT 1 PORT

Part	Applications	Orientation	Primary Material	Contact Finish - Mating	Insert Material	Contact Material	Shell Material	Color	Fastening Type	Shielding	Shell Finish	Shell Size - Insert	Mounting Type	Qualification	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation
TE Connectivity AMP Connectors DL61H-10-5PN	Aerospace	N (Normal)	Metal	Gold	Glass	Nickel Iron Alloy	Steel	Silver	Bayonet Lock	Unshielded	Tin	10-5	Panel Mount	MIL-DTL-83723 Series III	5	Receptacle Male Pins	-65 ░C	200 °C
TE Connectivity AMP Connectors DL61H-10-5P6 [V003]	Aerospace		Metal	Gold	Glass	Nickel Iron Alloy	Steel	Silver	Bayonet Lock	Unshielded	Tin	10-5	Panel Mount	MIL-DTL-83723 Series III	5	Receptacle Male Pins	-65 ░C	200 °C	6
TE Connectivity AMP Connectors DL61H-10-5P6 [V001]	Aerospace		Metal	Gold	Glass	Nickel Iron Alloy	Steel	Silver	Bayonet Lock	Unshielded	Tin	10-5	Panel Mount	MIL-DTL-83723 Series III	5	Receptacle Male Pins	-65 ░C	200 °C	6
TE Connectivity AMP Connectors DL61H-10-5PN [V003]	Aerospace	N (Normal)	Metal	Gold	Glass	Nickel Iron Alloy	Steel	Silver	Bayonet Lock	Unshielded	Tin	10-5	Panel Mount	MIL-DTL-83723 Series III	5	Receptacle Male Pins	-65 ░C	200 °C
TE Connectivity AMP Connectors DL61H-10-5PN-034	Aerospace	N (Normal)	Metal	Gold	Glass	Nickel Iron Alloy	Steel	Silver	Bayonet Lock	Unshielded	Tin	10-5	Panel Mount	MIL-DTL-83723 Series III	5	Receptacle Male Pins	-65 ░C	200 °C
