BPF Series

Catalog

SIGNAL CONDITIONING BANDPASS FLTR / SURF MT / ROHS

Part	Filter Type	Mounting Type	Frequency	Bandwidth	Package / Case	Height (Max) [z]	Height (Max) [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Insertion Loss	Height (Max) [diameter]	Height (Max) [Max] [diameter]
Mini-Circuits BPF-A1340+	Band Pass	Surface Mount	1.34 GHz	800 MHz	18-SMD No Lead	0.35 in	8.89 mm	18.54 mm	1.36 in	0.73 in	34.54 mm
Mini-Circuits BPF-B199+	Band Pass	Surface Mount	199 MHz	10 MHz	6-SMD No Lead			11.99 mm	0.826 "	0.472 "	20.98 mm	5 dB	5.59 mm	0.22 in

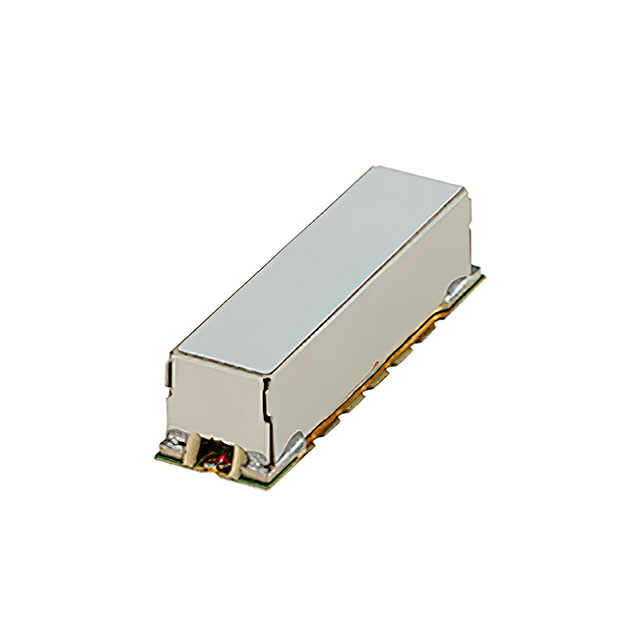

Mini-Circuits BPF-A127+	Band Pass	Surface Mount	127 MHz	19 MHz	14-SMD Module	0.35 in	8.89 mm	9.27 mm	1.36 in	0.365 in	34.54 mm
Mini-Circuits BPF-A475+	Band Pass	Surface Mount	475 MHz	150 MHz	14-SMD Module			9.27 mm	1.36 in	0.365 in	34.54 mm	2 dB	5.59 mm	0.22 in
