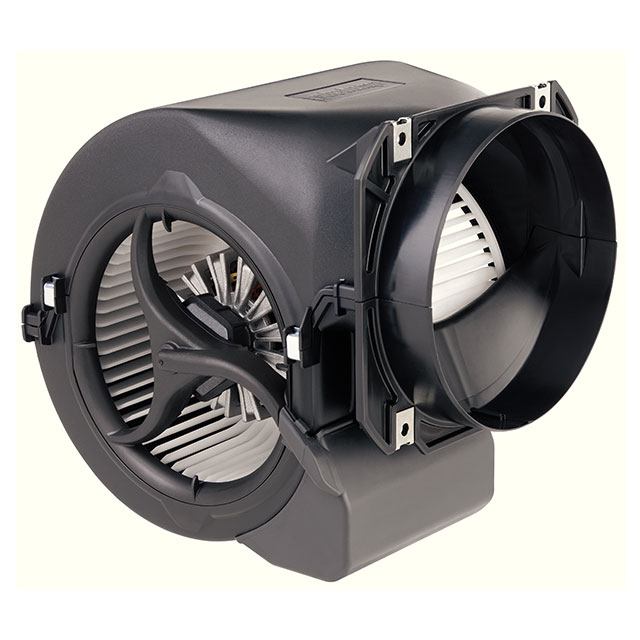

D2E146 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
AC BLOWER CENTRIFUGAL BALL BEARING 230V 570.9CFM/406.1CFM 270 X 205 X 219MM
| Part | Current Rating (Amps) | Material - Frame | Material - Blade | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure | Features | Approval Agency | Power (Watts) | Bearing Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension | RPM | Termination | Width [y] | Ingress Protection | Voltage - Rated | Fan Type | Width | Operating Temperature | Operating Temperature | Width [x] | Size / Dimension [z] | Air Flow | Air Flow | Weight | Weight | Power (Watts) [Max] | Power (Watts) [Min] | Noise [Max] | Noise [Min] | Air Flow [Max] | Air Flow [Min] | Air Flow [Min] | Air Flow [Max] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 1.45 A | Steel | Steel | -25 °C | 25 °C | 25 °C | -25 °C | 400 Pa | 1.606 in H2O | Capacitor Thermal Overload Protector (TOP) | CCC EAC | 330 W | Ball | 205 mm | 219 mm | Rectangular/Rounded | 2550 RPM | 4 Wire Leads with Splice Terminals | 270 mm | IP44 | 230 VAC | Blower | ||||||||||||||||||
 ebm-papst Inc. | 3.75 A | Polypropylene (PP) | Steel | -25 °C | 40 °C | 40 °C | -25 °C | 100 Pa | 0.401 in H2O | Capacitor Thermal Overload Protector (TOP) | CE | 430 W | Ball | 220 mm | 216 mm | Rectangular/Rounded | 2000 RPM | 6 Position Rectangular Connector | IP20 | 115 VAC | Blower Centrifugal | 199 mm | ||||||||||||||||||
 ebm-papst Inc. | 1.75 A | Polypropylene (PP) | Steel | -25 °C | 50 °C | 50 °C | -25 °C | 200 Pa | 0.803 in H2O | Capacitor Thermal Overload Protector (TOP) | 400 W | Ball | 220 mm | 216 mm | Rectangular/Rounded | 2100 RPM | 6 Position Rectangular Connector | IP20 | 230 VAC | Blower Centrifugal | 199 mm | |||||||||||||||||||
 ebm-papst Inc. | 3.3 A | Polypropylene (PP) | Steel | 200 Pa | 0.803 in H2O | Capacitor Thermal Overload Protector (TOP) | CE CSA UL | 380 W | Ball | 220 mm | 216 mm | Rectangular/Rounded | 2150 RPM | 6 Position Rectangular Connector | IP20 | 115 VAC | Blower Centrifugal | 199 mm | ||||||||||||||||||||||
 ebm-papst Inc. | 1.75 A | Polypropylene (PP) | Steel | -25 °C | 50 °C | 50 °C | -25 °C | 200 Pa | 0.803 in H2O | Capacitor Thermal Overload Protector (TOP) | 400 W | Ball | 220 mm | 216 mm | Rectangular/Rounded | 2100 RPM | 6 Position Rectangular Connector | IP20 | 230 VAC | Blower Centrifugal | 199 mm | |||||||||||||||||||
 ebm-papst Inc. | 1.09 A | Steel | Steel | 299.9 Pa | 1.204 in H2O | Capacitor Thermal Overload Protector (TOP) | CE | 250 W | Ball | 226 mm | Rectangular/Rounded | 2100 RPM | 4 Wire Leads with Splice Terminals | IP44 | 230 VAC | Blower | 30 °C | 86 °F | 176 mm | 241 mm | ||||||||||||||||||||
ebm-papst Inc. | 1.75 A | Polypropylene (PP) | Steel | -25 °C | 50 °C | 50 °C | -25 °C | 200 Pa | 0.803 in H2O | Capacitor Thermal Overload Protector (TOP) | 400 W | Ball | 220 mm | 216 mm | Rectangular/Rounded | 2100 RPM | 6 Position Rectangular Connector | IP20 | 230 VAC | Blower Centrifugal | 199 mm | |||||||||||||||||||
ebm-papst Inc. | 1.31 A | Steel | Steel | 200 Pa | 0.803 in H2O | Capacitor | 300 W | Ball | 2050 RPM | Terminal Block | IP44 | 230 VAC | Blower | 16 m³/min | 571.3 CFM | |||||||||||||||||||||||||
 ebm-papst Inc. | 1.75 A | Polypropylene (PP) | Steel | -25 °C | 50 °C | 50 °C | -25 °C | 200 Pa | 0.803 in H2O | Capacitor Thermal Overload Protector (TOP) | 400 W | Ball | 220 mm | 216 mm | Rectangular/Rounded | 2100 RPM | 6 Position Rectangular Connector | IP20 | 230 VAC | Blower Centrifugal | 199 mm | |||||||||||||||||||
 ebm-papst Inc. | Polypropylene (PP) | Polypropylene (PP) | CE VDE | 220 mm | 216 mm | Rectangular/Rounded | 6 Position Rectangular Connector | 115 VAC | Blower Centrifugal | 178 mm | 3.8 kg | 8.4 lbs | 455 W | 193 W | 63 dB(A) | 50 dB(A) | 582 CFM | 212 CFM | 5.94 m³/min | 16.3 m³/min | 146 mm |
