MS3102E24 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

MIL-5015 MS/AC THREADED RECEPT

Part	Connector Type	Qualification	Current Rating Options	Shell Size - Insert Width	Shell Size - Insert Length	Contact Material	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Shielding	Number of Positions	Shell Material	Shell Finish	Insert Material	Grade	Orientation	Ingress Protection	Color	Primary Material	Mounting Type	Applications	Contact Finish - Mating	Mounting Feature	Cable Opening	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Current Rating	Voltage Rating (DC)	Voltage Rating (AC)
Amphenol Aerospace Operations MS3102E24-12P	Male Pins Receptacle	MIL-DTL-5015	23A 80A	12 mm	24 mm	Copper Alloy	Solder Cup	125 °C	-55 °C	Threaded	Unshielded	5	Aluminum Alloy	Cadmium Olive Drab Chromate	Neoprene	Military	N (Normal)	Environment Resistant	Olive Drab	Metal	Panel Mount	Marine Military	Silver	Flange
Amphenol Aerospace Operations MS3102E24-10SW W/P CAP
Amphenol Aerospace Operations MS3102E24-9S	Female Sockets Receptacle	MIL-5015		9 mm	24 mm	Copper Alloy	Solder Cup	125 °C	-55 °C	Threaded	Unshielded	2	Aluminum Alloy	Cadmium Olive Drab Chromate	Neoprene		N (Normal)	Environment Resistant	Olive Drab	Metal	Panel Mount	Marine Military	Silver	Flange	1.375 in
Amphenol Aerospace Operations MS3102E24-17P
Amphenol Aerospace Operations MS3102E24-3P

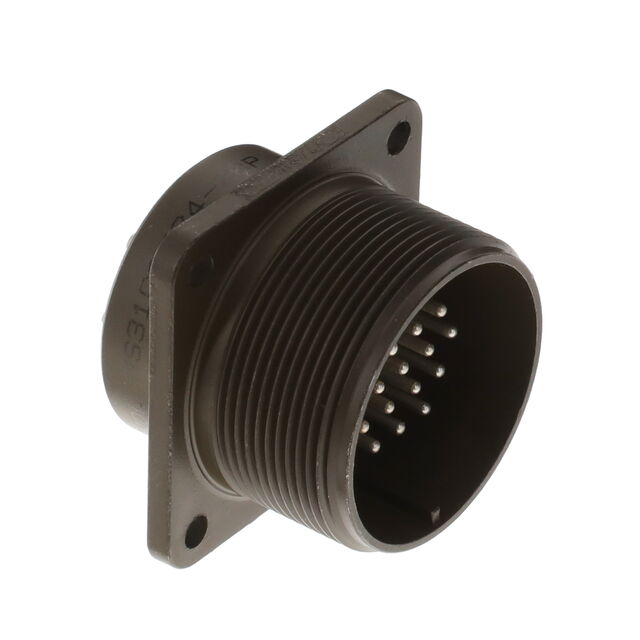

Amphenol Aerospace Operations MS3102E24-28P	Male Pins Receptacle	MIL-5015				Copper Alloy	Solder Cup	125 °C	-55 °C	Threaded	Unshielded	24 pos	Aluminum Alloy	Cadmium Olive Drab Chromate	Neoprene		N (Normal)	Environment Resistant	Olive Drab	Metal	Panel Mount	Marine Military	Silver	Flange	1.375 in	24	28
Amphenol Aerospace Operations MS3102E24-24P	Male Pins Receptacle	MIL-5015				Copper Alloy	Solder Cup	125 °C	-55 °C	Threaded	Unshielded	16	Aluminum Alloy	Cadmium Olive Drab Chromate	Neoprene		N (Normal)	Environment Resistant	Olive Drab	Metal	Panel Mount	Marine Military	Silver	Flange	1.375 in	24	24
Amphenol Aerospace Operations MS3102E24-6S	Female Sockets Receptacle	MIL-DTL-5015		6 mm	24 mm	Copper Alloy	Solder Cup	125 °C	-55 °C	Threaded	Unshielded	8	Aluminum Alloy	Cadmium Olive Drab Chromate	Neoprene	Military	N (Normal)	Environment Resistant	Olive Drab	Metal	Panel Mount	Marine Military	Silver	Flange				23 A
Amphenol Aerospace Operations MS3102E24-2P	Male Pins Receptacle	MIL-DTL-5015		2 mm	24 mm	Copper Alloy	Solder Cup	125 °C	-55 °C	Threaded	Unshielded	7	Aluminum Alloy	Cadmium Olive Drab Chromate	Neoprene	Military	N (Normal)	Environment Resistant	Olive Drab	Metal	Panel Mount	Marine Military	Silver	Flange				23 A	1250 VDC	900 VAC
Amphenol Aerospace Operations MS3102E24-24S	Female Sockets Receptacle	MIL-5015				Copper Alloy	Solder Cup	125 °C	-55 °C	Threaded	Unshielded	16	Aluminum Alloy	Cadmium Olive Drab Chromate	Neoprene		N (Normal)	Environment Resistant	Olive Drab	Metal	Panel Mount	Marine Military	Silver	Flange	1.375 in	24	24
