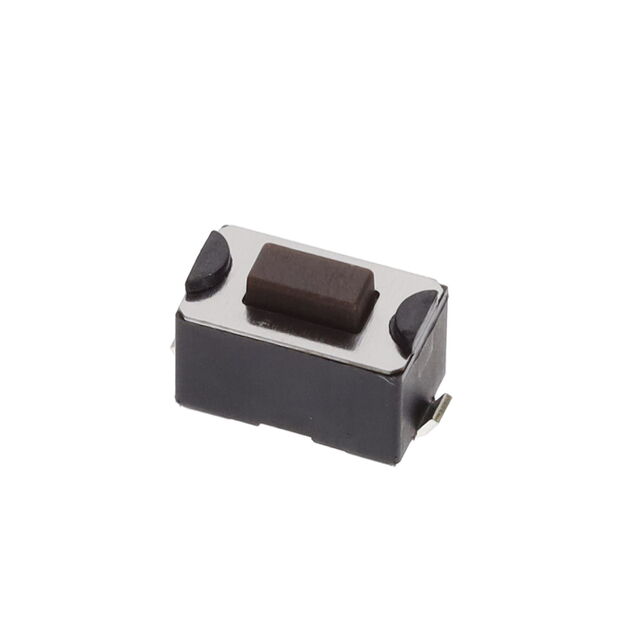

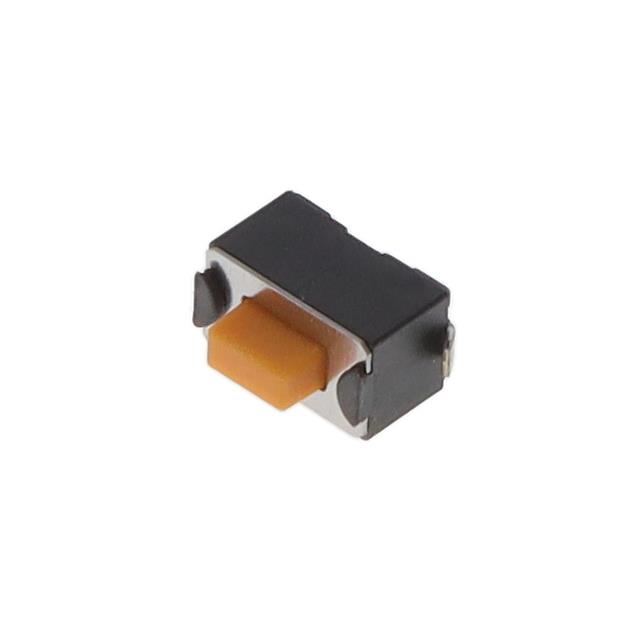

ADTSM3 Series
Manufacturer: APEM Inc.
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Actuator Material | Features | Actuator Type | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Actuator Height off PCB, Vertical [z] | Circuit | Mounting Type | Termination Style | Switch Function | Contact Rating @ Voltage | Outline [x] | Outline [y] | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 0.25 mm | Polyamide (PA) Nylon | Tactile Feedback | Rectangular Button | 320 gf | -25 °C | 70 °C | Non-Illuminated | 5 mm | SPST-NO | Surface Mount | J Lead | Off-Mom | 0.05 A 12 VDC | 6 mm | 3.5 mm | Top Actuated |
 APEM Inc. | 0.25 mm | Polyamide (PA) Nylon | Tactile Feedback | Rectangular Button | 160 gf | -25 °C | 70 °C | Non-Illuminated | 4.3 mm | SPST-NO | Surface Mount | J Lead | Off-Mom | 0.05 A 12 VDC | 6 mm | 3.5 mm | Top Actuated |
 APEM Inc. | 0.25 mm | Polyamide (PA) Nylon | Tactile Feedback | Rectangular Button | 320 gf | -25 °C | 70 °C | Non-Illuminated | 5 mm | SPST-NO | Surface Mount | J Lead | Off-Mom | 0.05 A 12 VDC | 6 mm | 3.5 mm | Top Actuated |
APEM Inc. | 0.25 mm | Polyamide (PA) Nylon | Tactile Feedback | Rectangular Button | 160 gf | -25 °C | 70 °C | Non-Illuminated | 5 mm | SPST-NO | Surface Mount | J Lead | Off-Mom | 0.05 A 12 VDC | 6 mm | 3.5 mm | Top Actuated |
