951210 Series

Catalog

CONN HEADER SMD 10POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Mating	Fastening Type	Termination	Contact Length - Mating	Contact Length - Mating	Mounting Type	Number of Rows [custom]	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Shape	Shrouding	Contact Type	Connector Type	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Features
3M Electronic Specialty 951210-2550-AR-PT	39.4 çin	1 çm	0.06 in	1.52 mm	UL94 V-0	Tin	10	Flash	0.079 "	2 mm	Black	Gold	Push-Pull	Solder	4 mm	0.157 in	Surface Mount	2	Copper Alloy	105 ░C	-25 °C	All	Square	Unshrouded	Male Pin	Header	Thermoplastic	2 mm	0.079 in	Board Guide Pick and Place

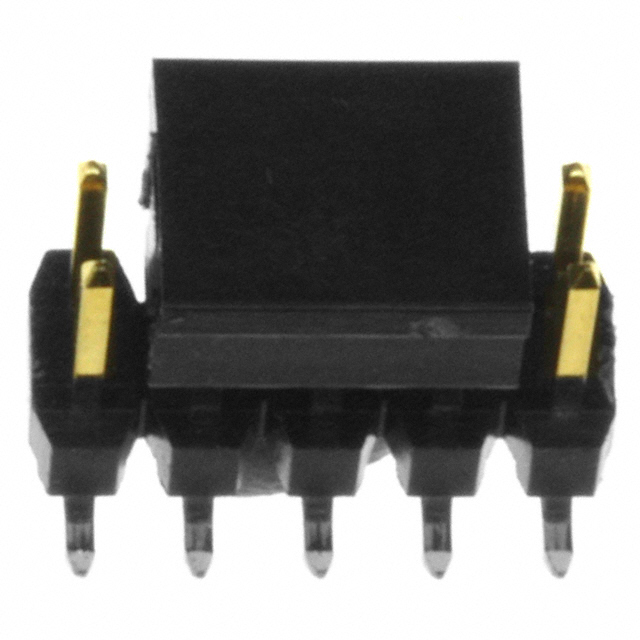

3M Electronic Specialty 951210-2520-AR-PR	39.4 çin	1 çm	0.06 in	1.52 mm	UL94 V-0	Tin	10	Flash	0.079 "	2 mm	Black	Gold	Push-Pull	Solder	4 mm	0.157 in	Surface Mount	2	Copper Alloy	105 ░C	-25 °C	All	Square	Unshrouded	Male Pin	Header	Thermoplastic	2 mm	0.079 in	Pick and Place
3M Electronic Specialty 951210-2520-AR-PT	39.4 çin	1 çm	0.06 in	1.52 mm	UL94 V-0	Tin	10	Flash	0.079 "	2 mm	Black	Gold	Push-Pull	Solder	4 mm	0.157 in	Surface Mount	2	Copper Alloy	105 ░C	-25 °C	All	Square	Unshrouded	Male Pin	Header	Thermoplastic	2 mm	0.079 in	Pick and Place
