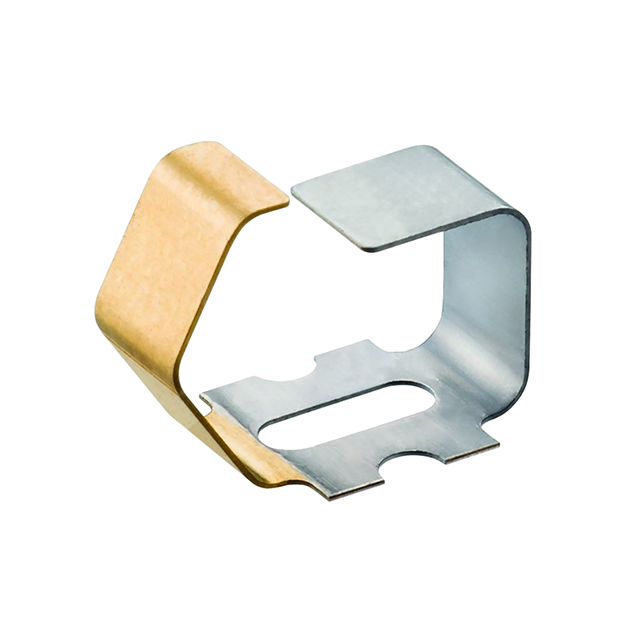

S1941 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONNECTOR ACCESSORY, SHIELD FINGER, PCB SHIELDING AND GROUNDING APPLICATIONS
| Part | Type | Plating - Thickness | Plating - Thickness | Material | Height [z] | Height [z] | Plating | Length [x] | Length [x] | Width [x] | Width [x] | Attachment Method | Plating - Thickness | Width | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Shield Finger | 3 µm | 118.11 µin | Beryllium Copper | 0.285 in | 7.25 mm | Tin | 0.378 in | 9.59 mm | 0.224 in | 5.7 mm | Solder | |||
 Harwin Inc. | Shield Finger | 0.285 in | 7.25 mm | Gold | 0.378 in | 9.6 mm | Solder | Flash | 0.225 in | 5.7 mm |
