JB5CS08A Series
Manufacturer: JAE Electronics
Beta
⌘K

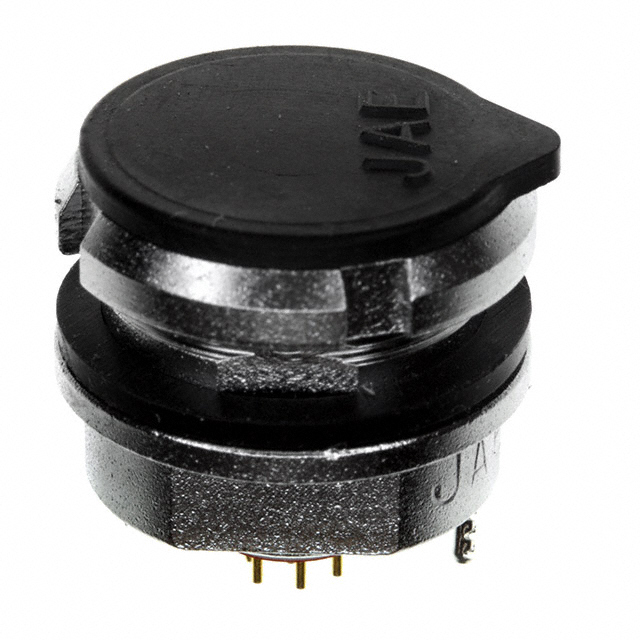

CONN RCPT WATERPROOF 8POS T/H
| Part | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Features | Orientation | Primary Material | Contact Material | Shell Size - Insert | Insert Material | Applications | Shell Finish | Number of Positions | Color | Mounting Feature | Ingress Protection | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Connector Type | Voltage Rating | Contact Finish - Mating | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 2 A | Panel Mount Through Hole | -55 C | 85 °C | Solder | Dust Cap Ground | Keyed | Metal | Copper Alloy | S | Synthetic Resin | Medical Telecommunications Test & Measurement | Chromium | 8 | Silver | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | Shielded | 0.76 Ám | 30 Áin | Push-Pull | Receptacle Female Sockets | 200 VAC | Gold | Copper Alloy |
 JAE Electronics | 2 A | Panel Mount Through Hole | -55 C | 85 °C | Solder | Dust Cap Ground | Keyed | Metal | Copper Alloy | S | Synthetic Resin | Medical Telecommunications Test & Measurement | Chromium | 8 | Silver | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | Shielded | 0.76 Ám | 30 Áin | Push-Pull | Receptacle Female Sockets | 200 VAC | Gold | Copper Alloy |
JAE Electronics | 2 A | Panel Mount Through Hole | -55 C | 85 °C | Solder | Dust Cap Ground | Keyed | Metal | Copper Alloy | S | Synthetic Resin | Medical Telecommunications Test & Measurement | Chromium | 8 | Silver | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | Shielded | 0.76 Ám | 30 Áin | Push-Pull | Receptacle Female Sockets | 200 VAC | Gold | Copper Alloy |
