J115F21 Series

Catalog

RELAY GEN PURPOSE SPDT 40A 12V

Part	Coil Resistance	Load - Max Switching	Coil Insulation	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Contact Rating (Current)	Contact Material	Must Operate Voltage	Must Release Voltage	Operate Time	Approval Agency	Coil Current	Release Time	Relay Type	Mounting Type	Seal Rating	Switching Voltage [Max]	Contact Form	Termination Style

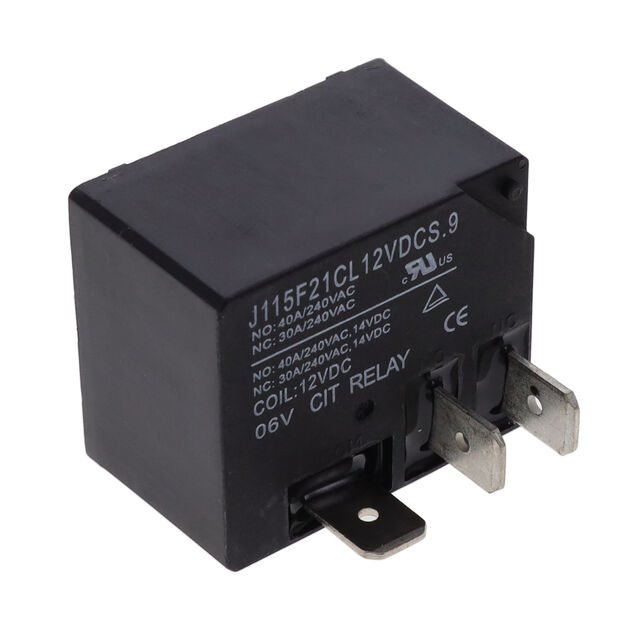

CIT Relay and Switch J115F21CL12VDCS.9	160 Ohms	1120 W 4400 W 9600 VA 11080 VA	Class F	12 VDC	-55 C	125 °C	Non Latching	40 A	Silver Tin Oxide (AgSnO)	9 VDC	1.2 VDC	15 ms	cURus TUV	0.075 A	10 ms	General Purpose	Through Hole	Sealed - Fully	110 VDC 277 VAC	SPDT (1 Form C)	PC Pin Quick Connect - 0.250" (6.3mm)
CIT Relay and Switch J115F21A110VACS	2.36 kOhms	1120 W 4400 W 9600 VA 11080 VA	Class F	110 VAC/DC	-55 C	125 °C	Non Latching	40 A	Silver Tin Oxide (AgSnO)	82.5 VAC	33 VAC	15 ms	cURus TUV	46.6 mA	10 ms	General Purpose	Through Hole	Sealed - Fully	110 VDC 277 VAC	SPST-NO (1 Form A)	PC Pin Quick Connect - 0.250" (6.3mm)
CIT Relay and Switch J115F21CH12VDCS61.5	96 Ohms	5500 W 13850 VA	Class F	12 VDC	-55 C	125 °C	Non Latching	50 A	Silver Tin Oxide (AgSnO)	9 VDC	1.2 VDC	15 ms		125 mA	10 ms	General Purpose	Through Hole	Sealed - Fully	110 VDC 277 VAC	SPDT (1 Form C)	PC Pin Quick Connect - 0.250" (6.3mm)

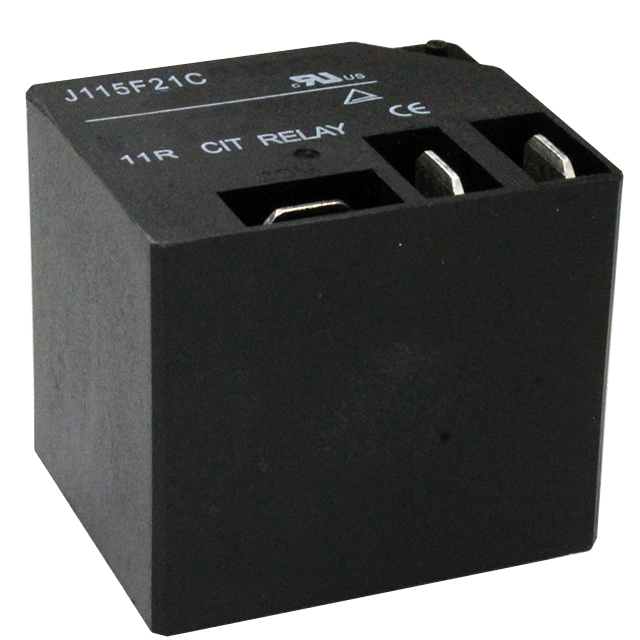

CIT Relay and Switch J115F21CH24VDCS61.5	384 Ohms	5500 W 13850 VA	Class F	24 VDC	-55 C	125 °C	Non Latching	50 A	Silver Tin Oxide (AgSnO)	18 VDC	2.4 VDC	15 ms		62.5 mA	10 ms	General Purpose	Through Hole	Sealed - Fully	110 VDC 277 VAC	SPDT (1 Form C)	PC Pin Quick Connect - 0.250" (6.3mm)
CIT Relay and Switch J115F21C5VDCS.9	28 Ohms	1120 W 4400 W 9600 VA 11080 VA	Class F	5 VDC	-55 C	125 °C	Non Latching	40 A	Silver Tin Oxide (AgSnO)	3.75 VDC	0.5 VDC	15 ms	cURus TUV	178.6 mA	10 ms	General Purpose	Through Hole	Sealed - Fully	110 VDC 277 VAC	SPDT (1 Form C)	PC Pin Quick Connect - 0.250" (6.3mm)
CIT Relay and Switch J115F21A9VDCS.9	90 Ohms	1120 W 4400 W 9600 VA 11080 VA	Class F	9 VDC	-55 C	125 °C	Non Latching	40 A	Silver Tin Oxide (AgSnO)	6.75 VDC	0.9 VDC	15 ms	cURus TUV	0.1 A	10 ms	General Purpose	Through Hole	Sealed - Fully	110 VDC 277 VAC	SPST-NO (1 Form A)	PC Pin Quick Connect - 0.250" (6.3mm)

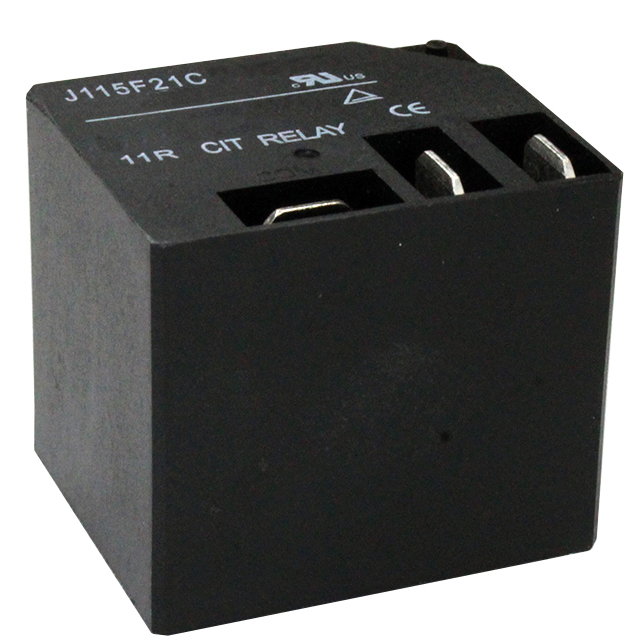

CIT Relay and Switch J115F21C24VDCS.9	640 Ohms	1120 W 4400 W 9600 VA 11080 VA	Class F	24 VDC	-55 C	125 °C	Non Latching	40 A	Silver Tin Oxide (AgSnO)	18 VDC	2.4 VDC	15 ms	cURus TUV	0.0375 A	10 ms	General Purpose	Through Hole	Sealed - Fully	110 VDC 277 VAC	SPDT (1 Form C)	PC Pin Quick Connect - 0.250" (6.3mm)
CIT Relay and Switch J115F21C24VACS	120 Ohms	1120 W 4400 W 9600 VA 11080 VA	Class F	24 VAC	-55 C	125 °C	Non Latching	40 A	Silver Tin Oxide (AgSnO)	18 VAC	7.2 VAC	15 ms	cURus TUV	200 mA	10 ms	General Purpose	Through Hole	Sealed - Fully	110 VDC 277 VAC	SPDT (1 Form C)	PC Pin Quick Connect - 0.250" (6.3mm)
CIT Relay and Switch J115F21AL220VACS	13.49 kOhms	1120 W 4400 W 9600 VA 11080 VA	Class F	220 VAC/DC	-55 C	125 °C	Non Latching	40 A	Silver Tin Oxide (AgSnO)	165 VAC	66 VAC	15 ms	cURus TUV	16.3 mA	10 ms	General Purpose	Through Hole	Sealed - Fully	110 VDC 277 VAC	SPST-NO (1 Form A)	PC Pin Quick Connect - 0.250" (6.3mm)
CIT Relay and Switch J115F21CL110VDCS.9	13.445 kOhms	1120 W 4400 W 9600 VA 11080 VA	Class F	110 VDC	-55 C	125 °C	Non Latching	40 A	Silver Tin Oxide (AgSnO)	82.5 VDC	11 VDC	15 ms	cURus TUV	8.2 mA	10 ms	General Purpose	Through Hole	Sealed - Fully	110 VDC 277 VAC	SPDT (1 Form C)	PC Pin Quick Connect - 0.250" (6.3mm)
