HM1L42 Series

Catalog

METRAL HDR RA STB 4X12

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Color	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Features	Mounting Type	Connector Style	Number of Positions Loaded	Number of Positions	Termination	Contact Finish
Amphenol ICC (FCI) HM1L42DAP000H6P	-55 C	125 °C	UL94 V-0	Natural	Header Male Pins	30 Áin	0.76 Ám	0.079 in	2 mm	Board Guide	Board Edge Right Angle Through Hole	High Speed	All	48	Solder	Gold

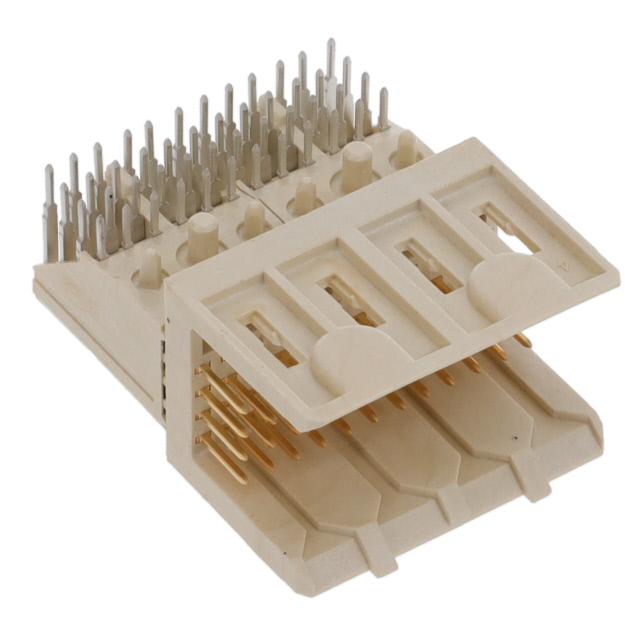

Amphenol ICC (FCI) HM1L42AAP000H6PLF	-55 C	125 °C	UL94 V-0	Natural White	Header Male Pins	30 Áin	0.76 Ám	0.079 in	2 mm	Board Guide	Board Edge Right Angle Through Hole		All	48	Press-Fit	Gold

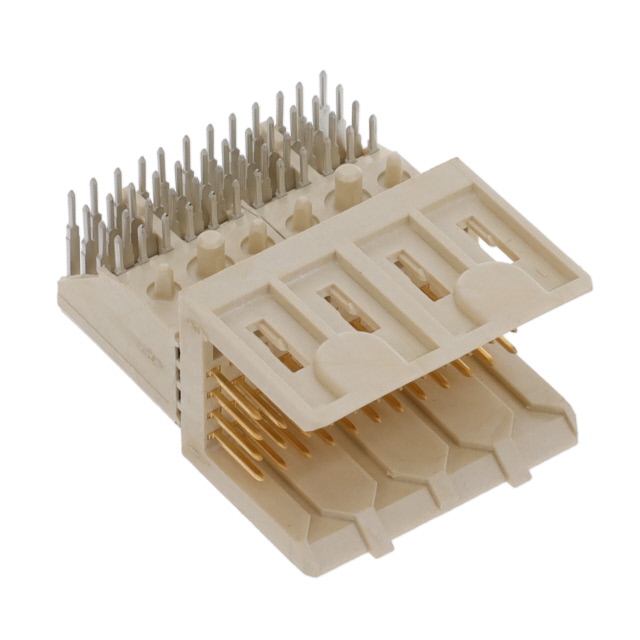

Amphenol ICC (FCI) HM1L42LAP000H6PLF	-55 C	125 °C	UL94 V-0	Natural White	Header Male Pins			0.079 in	2 mm	Board Guide	Board Edge Right Angle Through Hole		All	48	Solder	Gold
Amphenol ICC (FCI) HM1L42BAP000H6PLF	-55 C	125 °C	UL94 V-0	Natural	Header Male Pins			0.079 in	2 mm	Board Guide	Board Edge Right Angle Through Hole		All	48	Solder	Gold
Amphenol ICC (FCI) HM1L42DDP000H6PLF	-55 C	125 °C	UL94 V-0	Natural White	Header Male Pins	30 Áin	0.76 Ám	0.079 in	2 mm	Board Guide	Board Edge Right Angle Through Hole		All	48	Press-Fit	Gold
Amphenol ICC (FCI) HM1L42DAP000H6PLF	-55 C	125 °C	UL94 V-0	Natural White	Header Male Pins	30 Áin	0.76 Ám	0.079 in	2 mm	Board Guide	Board Edge Right Angle Through Hole		All	48	Solder	Gold
Amphenol ICC (FCI) HM1L42DDP485H6PLF	-55 C	125 °C	UL94 V-0	Natural	Header Male Pins			0.079 in	2 mm	Board Guide	Board Edge Right Angle Through Hole		All	48	Press-Fit	Gold
