LM3269 Series
Manufacturer: Texas Instruments
Beta
⌘K
SEAMLESS TRANSITION BUCK/BOOST CONVERTER FOR LTE AND HSPA RF POWER AMPLIFIERS
| Part | Mounting Type | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output [Max] | Voltage - Output [Min] | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Package / Case | Supplier Device Package [y] | Supplier Device Package [x] | Utilized IC / Part | Current - Output | Outputs and Type | Outputs and Type | Board Type | Main Purpose | Supplied Contents | Frequency - Switching | Regulator Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 12-DSBGA | -30 ░C | 85 °C | 4.2 V | 0.6 V | Converter RF Power Amplifier | 2.7 V | 5.5 V | 1 | 12-WFBGA | |||||||||||
 Texas Instruments | Surface Mount | 12-DSBGA | -30 ░C | 85 °C | 4.2 V | 0.6 V | Converter RF Power Amplifier | 2.7 V | 5.5 V | 1 | 12-WFBGA DSBGA | 2.5 | 2 | |||||||||

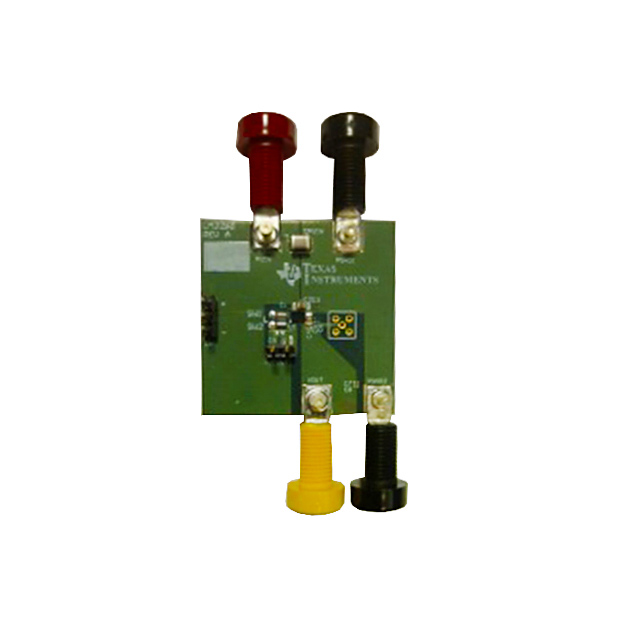

 Texas Instruments | 4.2 V | 0.6 V | 2.7 V | 5.5 V | LM3269 | 750 mA | Non-Isolated | 1 | Fully Populated | DC/DC Step Up or Down | Board(s) | 2.4 MHz | Buck-Boost |
