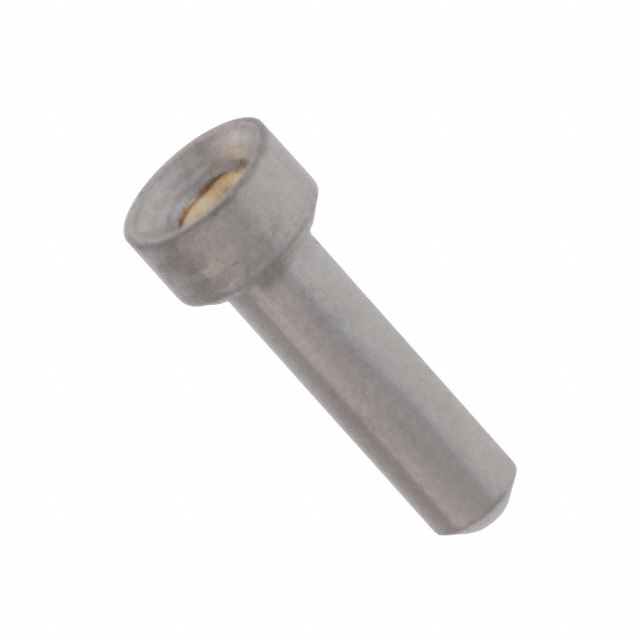

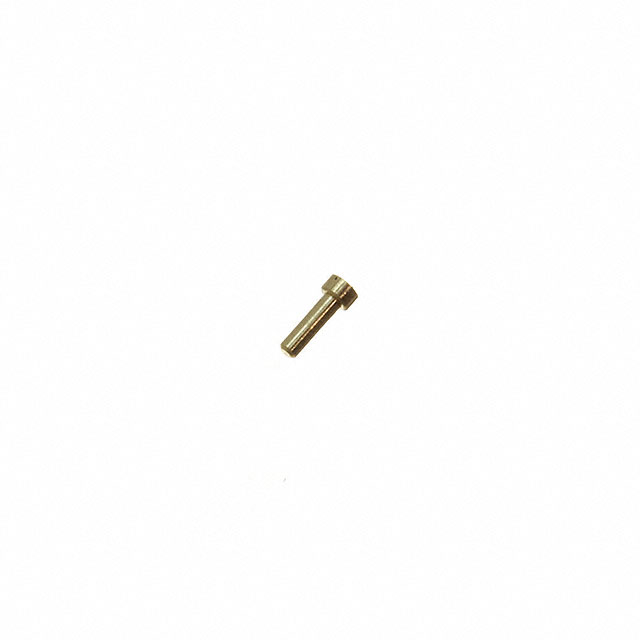

0548-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.022 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Hole Diameter	Mounting Hole Diameter	Flange Diameter	Flange Diameter	Contact Finish	Socket Depth	Socket Depth	Contact Material	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0548-0-15-01-21-27-10-0	-55 C	125 °C	Solder	0.91 mm	0.036 in	0.058 in	1.47 mm	Gold	3.51 mm	0.138 in	Beryllium Copper	3.94 mm	0.155 in	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	0.031 in	0.79 mm	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0548-0-15-80-21-84-10-0	-55 C	125 °C	Solder	0.91 mm	0.036 in	0.058 in	1.47 mm	Tin	3.51 mm	0.138 in	Beryllium Copper	3.94 mm	0.155 in	0.38 mm	0.02 in	0.015 "		No Tail	0.031 in	0.79 mm	100 µin	2.54 µm	0.51 mm
Mill-Max Manufacturing Corp. 0548-0-15-01-11-27-10-0	-55 C	125 °C	Solder	0.91 mm	0.036 in	0.058 in	1.47 mm	Gold	3.51 mm	0.138 in	Beryllium Copper	3.94 mm	0.155 in	0.38 mm	0.02 in	0.015 "		No Tail	0.031 in	0.79 mm	30 Áin	0.76 Ám	0.51 mm
Mill-Max Manufacturing Corp. 0548-0-15-15-21-27-10-0	-55 C	125 °C	Solder	0.91 mm	0.036 in	0.058 in	1.47 mm	Gold	3.51 mm	0.138 in	Beryllium Copper	3.94 mm	0.155 in	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	0.031 in	0.79 mm	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0548-0-15-01-21-14-10-0	-55 C	125 °C	Solder	0.91 mm	0.036 in	0.058 in	1.47 mm	Gold	3.51 mm	0.138 in	Beryllium Copper	3.94 mm	0.155 in	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	0.031 in	0.79 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0548-0-15-15-11-27-10-0	-55 C	125 °C	Solder	0.91 mm	0.036 in	0.058 in	1.47 mm	Gold	3.51 mm	0.138 in	Beryllium Copper	3.94 mm	0.155 in	0.38 mm	0.02 in	0.015 "		No Tail	0.031 in	0.79 mm	30 Áin	0.76 Ám	0.51 mm
