11072F Series

Manufacturer: CNC Tech

Catalog

CONN PLUG FMALE 4POS SOLDER CUP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insert Material [custom]	Insert Material [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shielding	Mounting Type	Number of Positions	Fastening Type	Orientation	Current Rating (Amps)	Contact Finish - Mating	Primary Material	Shell Material	Shell Size - Insert	Color	Mounting Feature	Shell Finish	Connector Type	Voltage Rating	Material Flammability Rating
CNC Tech 11072F-04-2-1-4	0.076 µm	3 µin	Copper Alloy	Nylon	Polyamide (PA)	-40 C	100 °C	IP68 - Dust Tight Waterproof	Unshielded	Panel Mount	4	Threaded	D	5 A	Gold	Metal	Copper Alloy	M12-4	Silver	Bulkhead - Rear Side Nut	Nickel	Plug Female Sockets	60 VAC	UL94 V-0
CNC Tech 11072F-04-2-1-1	0.076 µm	3 µin	Copper Alloy	Nylon	Polyamide (PA)	-40 C	100 °C	IP68 - Dust Tight Waterproof	Unshielded	Panel Mount	4	Threaded	A	5 A	Gold	Metal	Copper Alloy	M12-4	Silver	Bulkhead - Rear Side Nut	Nickel	Plug Female Sockets	60 VAC	UL94 V-0

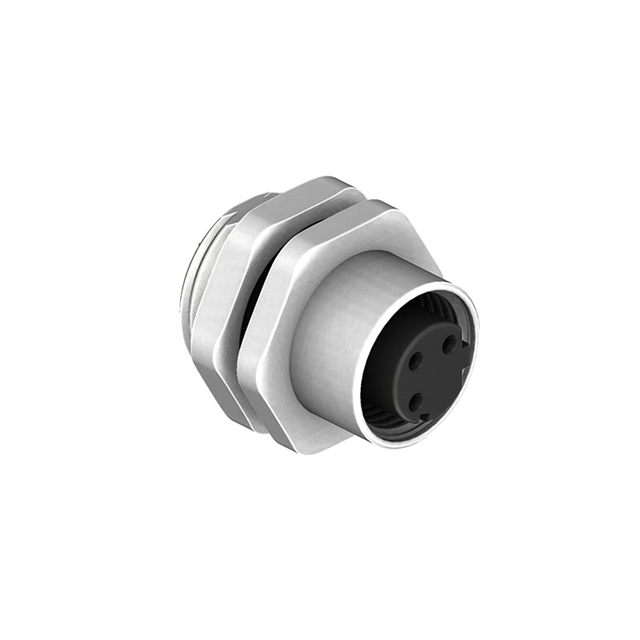

CNC Tech 11072F-03-2-1-4	0.076 µm	3 µin	Copper Alloy	Nylon	Polyamide (PA)	-40 C	100 °C	IP68 - Dust Tight Waterproof	Unshielded	Panel Mount		Threaded	D	5 A	Gold	Metal	Copper Alloy	M12-3	Silver	Bulkhead - Rear Side Nut	Nickel	Plug Female Sockets	60 VAC	UL94 V-0

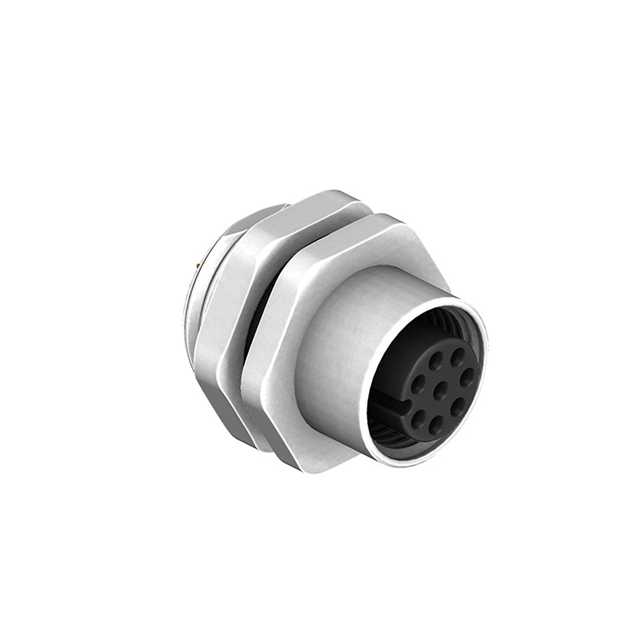

CNC Tech 11072F-08-2-1-1	0.076 µm	3 µin	Copper Alloy	Nylon	Polyamide (PA)	-40 C	100 °C	IP68 - Dust Tight Waterproof	Unshielded	Panel Mount	8	Threaded	A	5 A	Gold	Metal	Copper Alloy	M12-8	Silver	Bulkhead - Rear Side Nut	Nickel	Plug Female Sockets	60 VAC	UL94 V-0

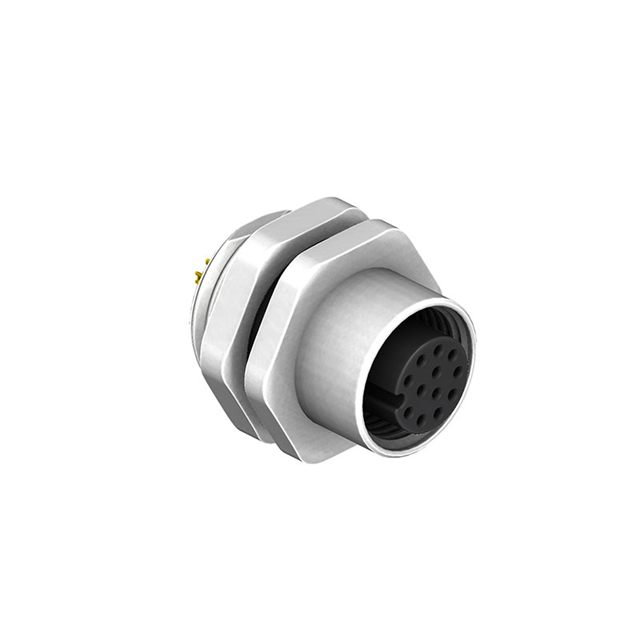

CNC Tech 11072F-12-2-1-1	0.076 µm	3 µin	Copper Alloy	Nylon	Polyamide (PA)	-40 C	100 °C	IP68 - Dust Tight Waterproof	Unshielded	Panel Mount	12	Threaded	A	5 A	Gold	Metal	Copper Alloy	M12-12	Silver	Bulkhead - Rear Side Nut	Nickel	Plug Female Sockets	60 VAC	UL94 V-0
CNC Tech 11072F-03-2-1-1	0.076 µm	3 µin	Copper Alloy	Nylon	Polyamide (PA)	-40 C	100 °C	IP68 - Dust Tight Waterproof	Unshielded	Panel Mount		Threaded	A	5 A	Gold	Metal	Copper Alloy	M12-3	Silver	Bulkhead - Rear Side Nut	Nickel	Plug Female Sockets	60 VAC	UL94 V-0

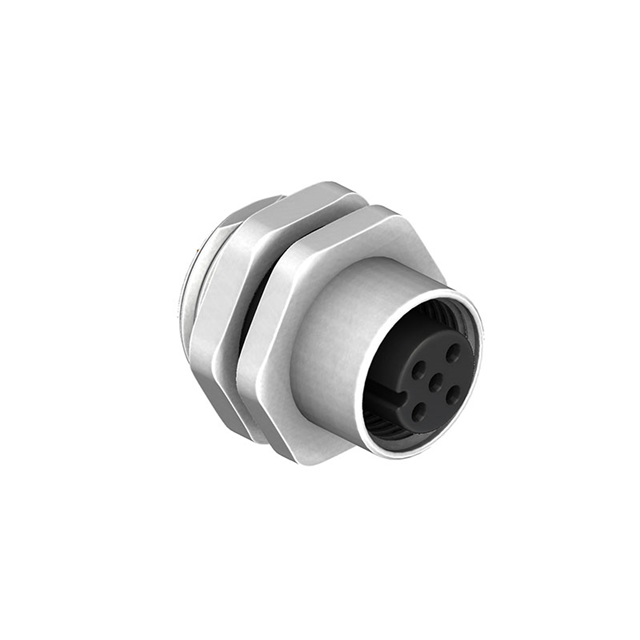

CNC Tech 11072F-05-2-1-1	0.076 µm	3 µin	Copper Alloy	Nylon	Polyamide (PA)	-40 C	100 °C	IP68 - Dust Tight Waterproof	Unshielded	Panel Mount	5	Threaded	A	5 A	Gold	Metal	Copper Alloy	M12-5	Silver	Bulkhead - Rear Side Nut	Nickel	Plug Female Sockets	60 VAC	UL94 V-0

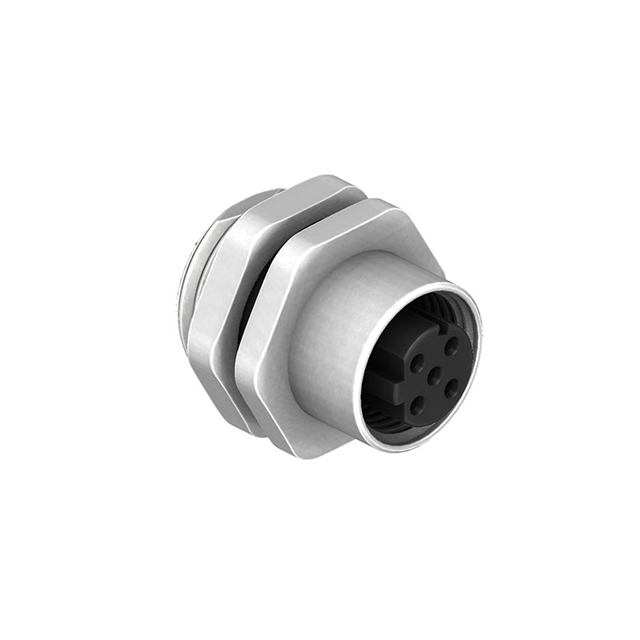

CNC Tech 11072F-05-2-1-4	0.076 µm	3 µin	Copper Alloy	Nylon	Polyamide (PA)	-40 C	100 °C	IP68 - Dust Tight Waterproof	Unshielded	Panel Mount	5	Threaded	D	5 A	Gold	Metal	Copper Alloy	M12-5	Silver	Bulkhead - Rear Side Nut	Nickel	Plug Female Sockets	60 VAC	UL94 V-0
