ADP-RPSM Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RP-SMA PLUG TO SMA JACK ADAPTER
| Part | Body Finish | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Body Material | Impedance | Conversion Type | Style | Convert From (Adapter End) | Adapter Series | Adapter Type | Frequency - Max [Max] | Center Contact Plating | Center Gender | Mounting Type | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

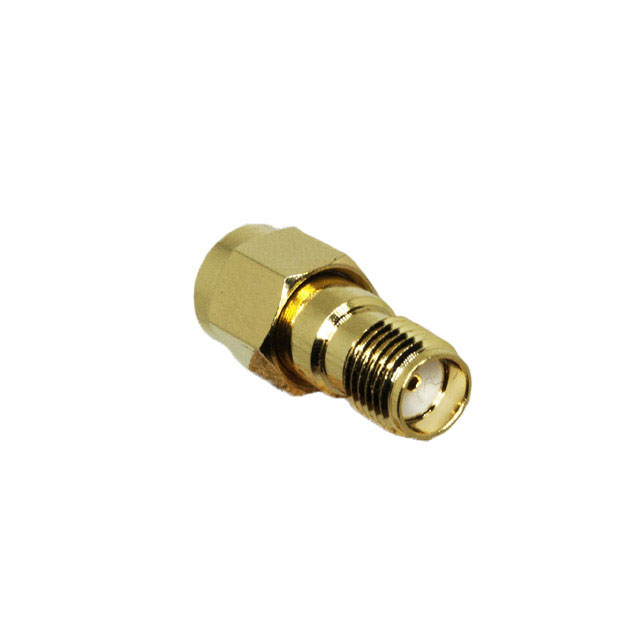

 TE Connectivity AMP Connectors | Gold | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Brass | 50 Ohms | Between Series | Straight | Female Socket RP-SMA Plug | SMA to RP-SMA | Plug to Jack | 18 GHz | Gold | Male to Female | Free Hanging (In-Line) | SMA Jack Female Socket |

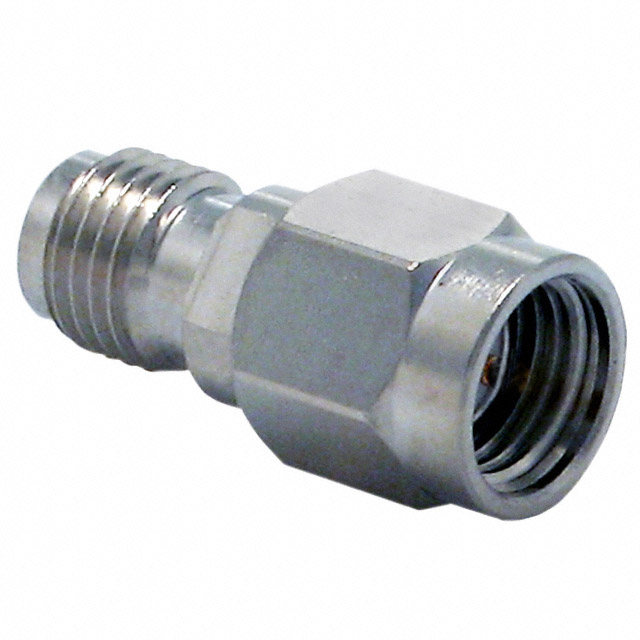

 TE Connectivity AMP Connectors | Nickel | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Brass | 50 Ohms | Between Series | Straight | Female Socket Male Pin RP-SMA Jack RP-SMA Plug | SMA to RP-SMA | Jack to Jack Plug to Jack | 12.4 GHz | Gold | Female to Female Male to Female | Free Hanging (In-Line) | SMA Jack Female Socket |
