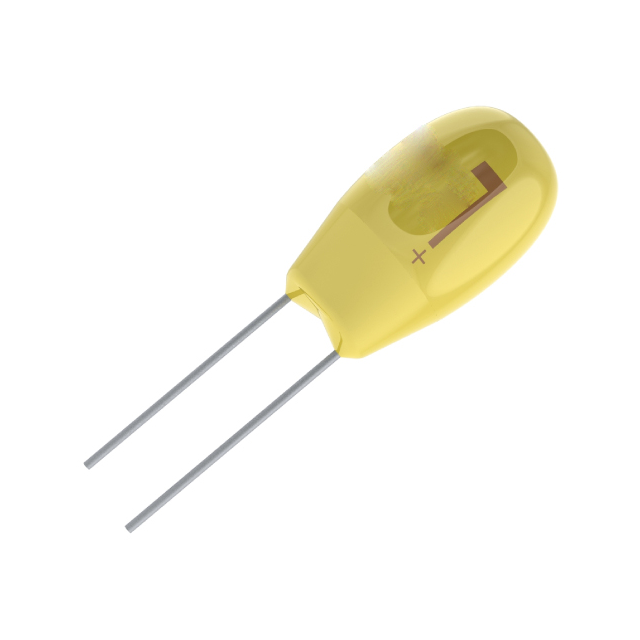

T356L Series

Manufacturer: KEMET

Catalog

CAPACITOR,33UF,35VDC,10-% TOL,10+% TOL

Part	Package / Case	Capacitance	ESR (Equivalent Series Resistance)	Tolerance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Manufacturer Size Code	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated
KEMET T356L336K035AT	Radial	33 ÁF	1 Ohm	10 %	General Purpose	-55 C	125 °C	0.2 in	5.08 mm	Conformal Coated	0.35 in	8.9 mm	Through Hole	L	18.1 mm	0.713 in	35 V
KEMET T356L107K016AS	Radial	100 µF	800 mOhm	10 %	General Purpose	-55 C	125 °C	0.2 in	5.08 mm	Conformal Coated	0.35 in	8.9 mm	Through Hole	L	18.1 mm	0.713 in	16 V
KEMET T356L107K016AT	Radial	100 µF	800 mOhm	10 %	General Purpose	-55 C	125 °C	0.2 in	5.08 mm	Conformal Coated	0.35 in	8.9 mm	Through Hole	L	18.1 mm	0.713 in	16 V
