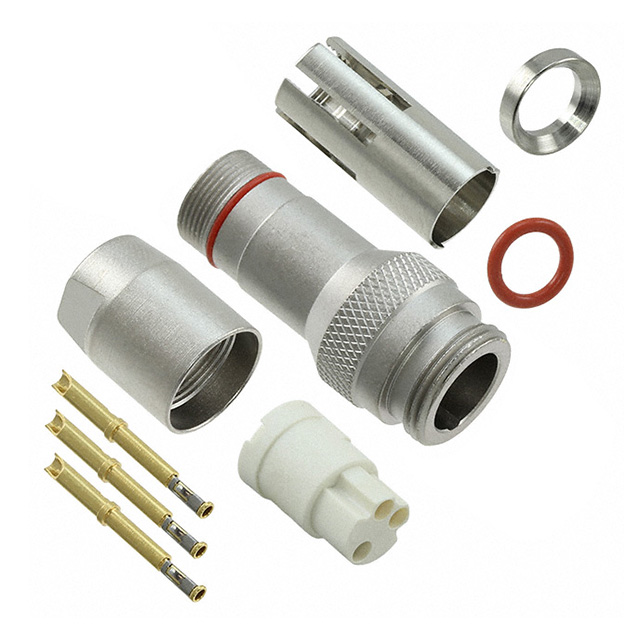

TS2L3F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CONN RCPT FMALE 3POS GOLD CRIMP
| Part | Contact Finish - Mating | Shell Finish | Contact Material | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Shell Material | Color | Orientation | Primary Material | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Mounting Type | Insert Material | Connector Type | Features | Applications | Voltage Rating | Backshell Material, Plating | Ingress Protection | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Gold | Electroless Nickel | Copper Alloy | 4.57 mm | 0.18 " | 5.49 mm | 0.216 in | Copper Alloy | Silver | Keyed | Metal | Threaded | -40 C | 135 °C | Shielded | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) | Receptacle Female Sockets | Backshell | Agriculture Audio General Medical Testing Equipment & Measurement | 125 VAC | Copper Alloy Nickel | IP66 IP67 IP68 | Crimp Solder Cup |
