UEI25-050 Series
Manufacturer: Murata Electronics
Beta
⌘K

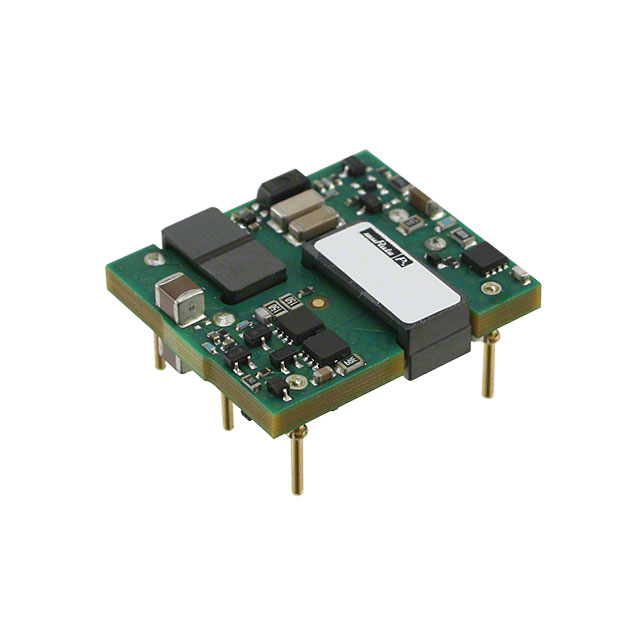

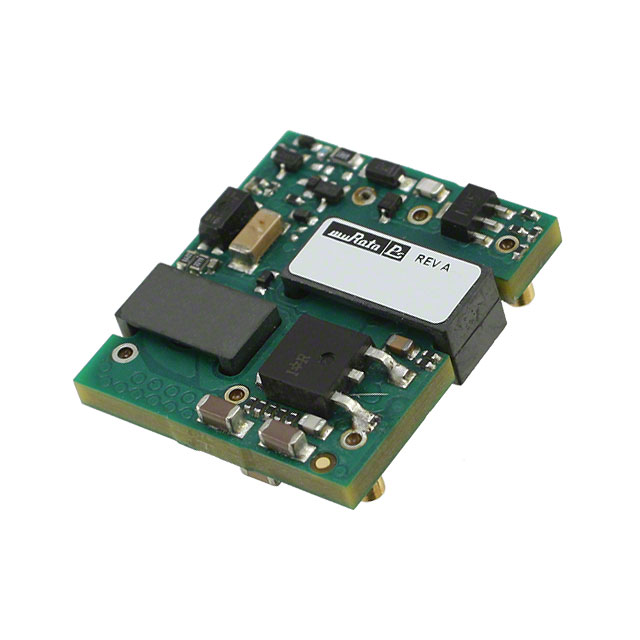

DC DC CONVERTER 5V 25W
| Part | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Features | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Efficiency | Mounting Type | Voltage - Output 1 | Number of Outputs | Package / Case | Voltage - Isolation | Current - Output (Max) | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 75 V | 36 V | Remote On/Off | Isolated Module | 1.1 in | 8.7 mm | 24.4 mm | 0.96 in | 0.34 in | 27.9 mm | 25 W | 85 °C | -40 C | ITE (Commercial) | 91 % | Surface Mount | 5 V | 1 | 6-SMD Module 1x1 Brick | 2250 VDC | 5 A | Active High Enable |
 Murata Electronics | 75 V | 36 V | OTP OVP Remote On/Off UVLO | Isolated Module | 1.1 in | 8.6 mm | 24.4 mm | 0.96 in | 0.34 in | 27.9 mm | 25 W | 85 °C | -40 C | ITE (Commercial) | 91 % | Surface Mount | 5 V | 1 | 6-SMD Module | 2250 VDC | 5 A | Active Low Enable |
Murata Electronics | 75 V | 36 V | Remote On/Off | Isolated Module | 1.1 in | 8.1 mm | 24.4 mm | 0.96 in | 0.32 " | 27.9 mm | 25 W | 85 °C | -40 C | ITE (Commercial) | 89 % | Through Hole | 5 V | 1 | 6-DIP Module | 2250 VDC | 5 A | Active High Enable |
