CM7560 Series
Manufacturer: Delevan
Beta
⌘K
COMMON MODE CHOKES / FILTERS 220UH 25% .02OHM
| Part | Number of Lines | Mounting Type | Package / Case | Height (Max) [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Inductance @ Frequency | DC Resistance (DCR) (Max) [Max] | Current Rating (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

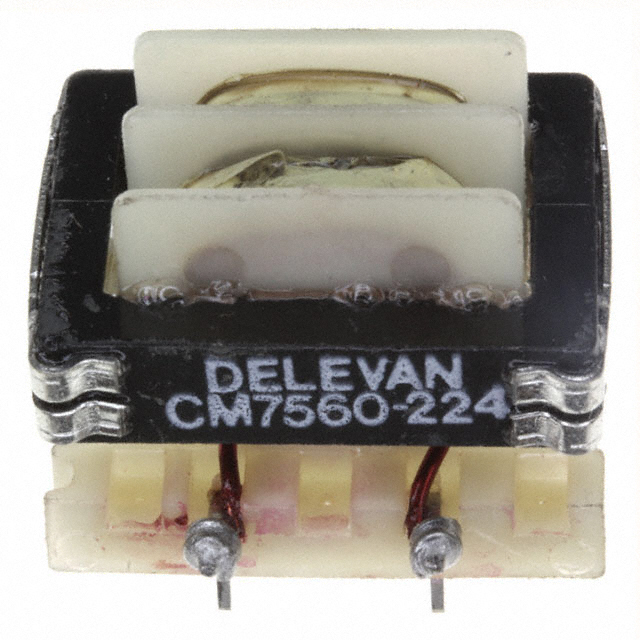

 Delevan | 2 | Through Hole | Vertical 4 PC Pin | 0.861 in 21.86 mm | 0.858 in | 21.8 mm | 1.071 " | 27.2 mm | -55 C | 125 °C | 220 µH | 20 mOhm | |

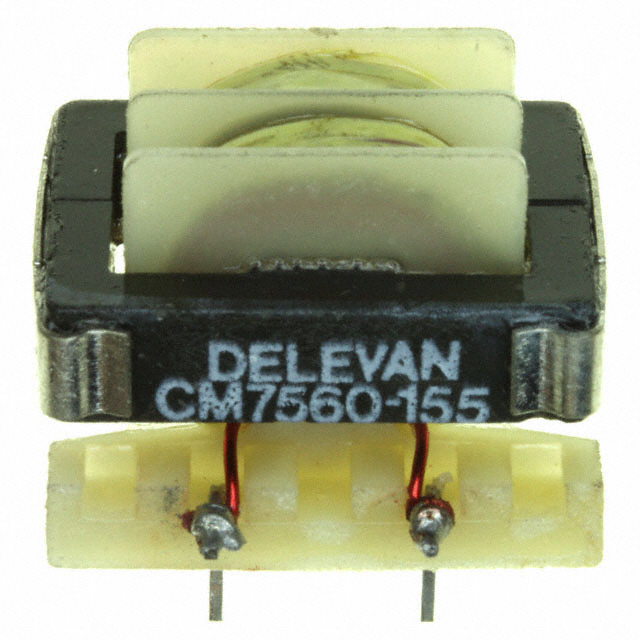

 Delevan | 2 | Through Hole | Vertical 4 PC Pin | 0.861 in 21.86 mm | 0.858 in | 21.8 mm | 1.071 " | 27.2 mm | -55 C | 125 °C | 1.5 mH | 115 mOhm | |

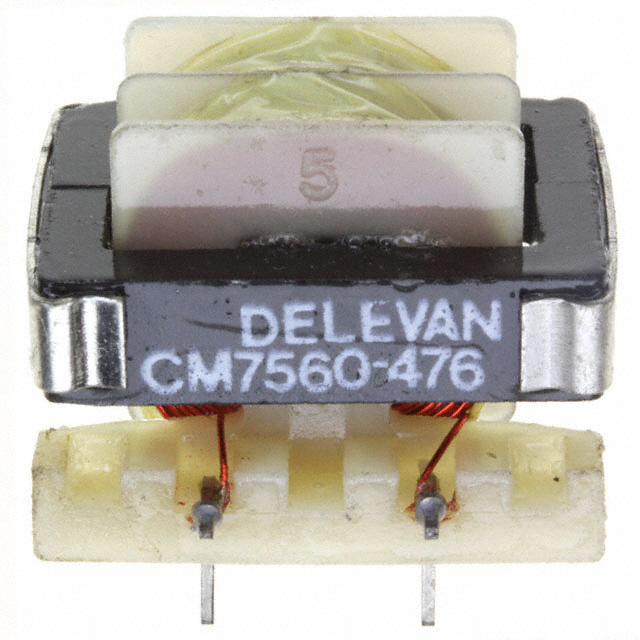

 Delevan | 2 | Through Hole | Vertical 4 PC Pin | 0.861 in 21.86 mm | 0.858 in | 21.8 mm | 1.071 " | 27.2 mm | -55 C | 125 °C | 47 mH | 3 Ohm | 440 mA |
